D10226-0 - Canbus Cable (1 Data Pair)

The D10226-0 is a 120 ohm controlled impedance CAN Bus cable designed to meet the high electrical demand of a CAN Bus cabling system. D10226-0 incorporates design features that provide maximum electrical performance with high strength copper alloy conductors and silver plated copper shields. A foamed Fluoropolymer wire insulation is used to reduce signal loss and weight for longer lengths. Its ETFE laser markable jacket passes EN3475-503 scrape abrasion testing and is also flexible for ease of installation.

D10226-0 Product Bulletin

D10226-0 Burn Test Data

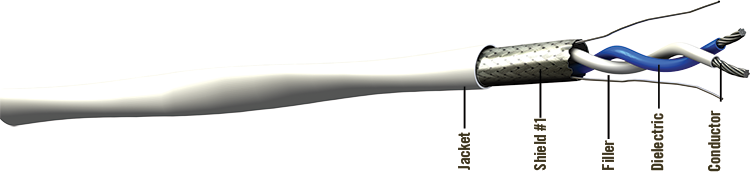

Cable Construction

  • Conductor: Silver-Plated High Strength Copper Alloy
  • Dielectric: FEP
  • Filler: Fluoropolymer
  • Binder: PTFE Tape
  • Shield #1: Silver-Plated Copper Braid
  • Jacket: ETFE ,White (Laser Markable)
../CableConstructionImageAltText

Color Codes

  • Pair #1: White, Blue

Physical Data

  • Conductor:26 AWG Stranded SPHSCA
  • Shield Coverage:95% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.15 (3.68)
  • Minimum Bend Radius: in (mm)0.70 (17.78)
  • Weight: lbs/100 ft (kg/100 m)1.45 (2.20)

Electrical Data

  • Impedance: ohms120
  • Capacitance: pF/ft (m)13.70 (44.90)
  • Velocity of Propagation: 80.00%
  • Dielectric Voltage Rating: (kV, RMS)0.90
  • DC Resistance: ohms/1000 ft (m)44.80 (147.00)

Attenuation

Frequency Max dB/100 ft (M)
@1 MHz 0.9 (3.0)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data
