D5102QX
D5102QX - Databus Cable Quadraxial (1 Data Pair)

The D5102QX is a 78 ohm high temperature quadrax cable . It is designed with isolated shields making it ideal for use in radar and other applications where susceptibility to noise is of concern and EMI suppression is required. D5102QX’s conductor insulation and inner/outer jackets are FEP. Filler are provided to aid in controlling uniform impedance while the double shields are silver-plated copper providing 95% minimum coverage.

D5102QX Product Bulletin

D5102QX Burn Test Data

Cable Construction

  • Conductor: Stranded Silver-Plated Copper
  • Dielectric: FEP
  • Fillers:  Fluoropolymer
  • Binder: Polyester Tape
  • Shield #1:  Silver-Plated Copper Braid
  • Inner Jacket: FEP, White
  • Shield #2: Silver-Plated Copper Braid
  • Outter Jacket: FEP, White

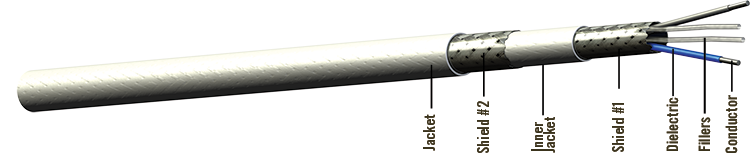

../CableConstructionImageAltText

Color Codes

  • Pair #1: Blue, Clear

Physical Data

  • Conductor:22 AWG Stranded SPC
  • Shield Coverage:95% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.23 (5.84)
  • Minimum Bend Radius: in (mm)1.15 (29.21)
  • Weight: lbs/100 ft (kg/100 m)5.80 (8.60)

Electrical Data

  • Impedance: ohms78
  • Capacitance: pF/ft (m)18.60 (61.00)
  • Velocity of Propagation: 70.00%
  • Dielectric Voltage Rating: (kV, RMS)1.50
  • DC Resistance: ohms/1000 ft (m)15.20 (49.90)

Attenuation

Frequency  Nom/Max dB/100 ft (m)
@10 MHz 3.0 (9.8)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data

Get Spec Sheet

Get a quote for D5102QX

Request technical support, sample information or quote

Contact Us
