D620224
D620224 - Databus Cable (1 Data Pair)

D620224 is a 70 Ohm controlled impedance cable specially designed for ARINC 429 data bus systems. Honeywell has approved D620224 for handling high-speed digital information, including: • UDI port inputs/outputs between DATA NAV processors, Lightning Sensor System processors and PRIMUS weather radar indicators. • Picture bus signals between PRIMUS weather radar receiver/transmitters and EFIS symbol generators. (Honeywell EPIC/APEX Integrated Avionics Systems) • AlliedSignal approved PIC cable D620224 for video and deflection cabling between the symbol generators and display units for the EFS 40/50.

D620224 Product Bulletin

D620224 Burn Test Data

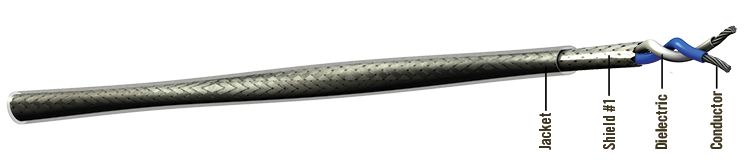

Cable Construction

  • Conductor: Tin-Plated Copper
  • Dielectric: ETFE
  • Shield #1:  Tin-Plated Copper Braid
  • Jacket: ETFE, Clear
../CableConstructionImageAltText

Color Codes

  • Pair #1: White, Blue

Physical Data

  • Conductor:24 AWG Stranded TPC
  • Shield Coverage:95% Braid
  • Temperature Range: -55/150°C
  • Outer Diameter: in (mm)0.14 (3.45)
  • Minimum Bend Radius: in (mm)0.68 (17.27)
  • Weight: lbs/100 ft (kg/100 m)1.70 (2.50)

Electrical Data

  • Impedance: ohms70
  • Capacitance: pF/ft (m)30.00 (98.40)
  • Velocity of Propagation: 70.00%
  • Dielectric Voltage Rating: (kV, RMS)1.50
  • DC Resistance: ohms/1000 ft (m)26.20 (86.00)

Attenuation

Frequency  Nom/Max dB/100 ft (m)
@1 MHz 1.4 (4.6)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data
