E10424 - CAT 5e Ethernet Cable (2 Data Pair)

The E10424 is a 2 pair, 10/100 Base-T CAT5e cable (exceeding ANSI/TIA-568-C.2 CAT 5e Channel Requirements) with a smaller overall diameter and weight while retaining performance and required operating parameters up to 268 ft. The twisted-pair construction of silver-plated copper alloy conductors assures uniform conductivity with excellent solderability. The 100% foil and 90% braided shielding provide mechanical strength and EMI protection and maintain weight and flexibility. A durable FEP jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation. E10424 is suitable for airborne 10/100 Base-T CAT5e Local Area Network applications such as cabin management systems (CMS), in-flight entertainment (IFE), and Ethernet backbones.

E10424 Product Bulletin

E10424 Burn Test Data

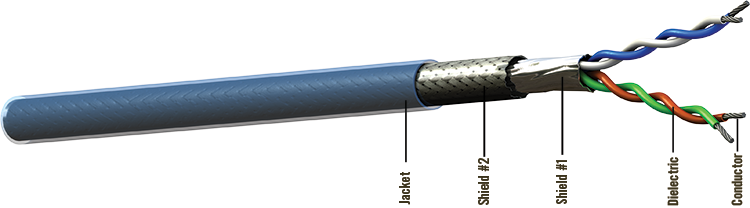

Cable Construction

  • Conductor: Stranded Silver-Plated Copper
  • Dielectric: FEP
  • Shield #1: Aluminum/Polyimide Foil
  • Shield #2: Silver-Plated Copper Braid
  • Jacket: FEP, Translucent Blue
../CableConstructionImageAltText

Color Codes

  • Pair #1: White/Blue
  • Pair #2: Orange/Green

Physical Data

  • Conductor:24 AWG Stranded SPC
  • Shield Coverage:100% (Foil)% Foil / 90% (Braid)% Braid
  • Operating Temperature: -55/200°C
  • Outer Diameter: in (mm)0.21 (5.28)
  • Minimum Bend Radius: in (mm)1.10 (27.94)
  • Weight: lbs/100 ft (kg/100 m)3.30 (4.90)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)13.00 (42.70)
  • Velocity of Propagation: 80.00%
  • Dielectric Voltage Rating: (kV, RMS)0.90
  • DC Resistance: ohms/1000 ft (m)28.50 (80.40)
  • Max Distance:* ft (m)268 (82)

Attenuation

Nom / Max dB/100 ft (dB/100 m)
@10 MHz 2.2/2.6 (7.2/8.5)
@100 MHz 6.0/7.2 (19.7/23.6)

Spec Sheet Builder

E10424 Connectors

Select one or more connector files to download directly or add to your compiled pdf document.

Connector TypeDescriptionPart NumberTermination InstructionsAdd to Spec Sheet
RJ45 For 2 Pair CablesJack w/ATUM Strain Relief (Cat 6a)110939T-110939-01
Plug w/Strain Relief sleeve (Cat 5e)190007 (568A)T-190061
Plug w/Strain Relief sleeve (Cat 5e)190015 (ISDN)T-190015
Plug w/Protective Boot (Cat 5e)190061 (568A)T-190061
Plug w/Protective Boot (Cat 5e)190062 (ISDN)T-190062
RJ45 For 4 Pair CablesPlug w/Strain Relief sleeve (Cat 5e)110362T-110362
Plug w/ATUM Strain Relief (Cat 6) fits Amphenol (RJF) Ruggedized Backshell110788T-110788
