E50424 - CAT 5e Ethernet Cable (Quadraxial

The E50424 is 100 Base-T Quadrax cable specially designed for airborne applications as defined by ARINC Specification 664. The overall design of E50424 allows a smaller overall diameter and weight while exceeding Category 5e requirements. The E50424’s construction of silver-plated copper conductors is surrounded by fluoropolymer dielectric insulation assuring uniform conductivity with excellent solderability. E50424 is designed to be terminated with ARINC 600 and D38999 quadrax contacts and is compatible with any contact designed for Draca Fileca cable P/N F4704. The 100% foil and 85% braided shielding provide double shielding to preserve technical performance. A fluoropolymer jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation.

E50424 Product Bulletin

E50424 Burn Test Data

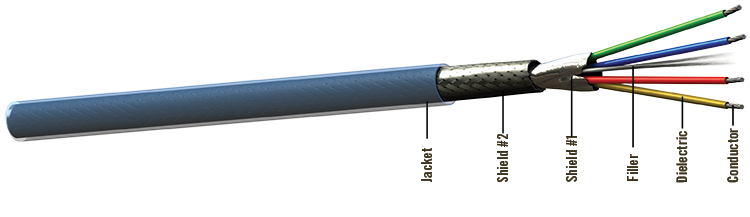

Cable Construction

  • Conductor: Stranded Silver-Plated Copper
  • Dielectric: PTFE
  • Filler: Yarn
  • Shield #1: Aluminum/Kapton Foil
  • Shield #2: Silver-Plated Copper Braid
  • Jacket: FEP, Translucent Blue

Color Codes

  • Pair #1: Red/Blue
  • Pair #2: Yellow/Green

Physical Data

  • Conductor:24 AWG Stranded SPC
  • Shield Coverage:100% (Foil)% Foil / 85% (Braid)% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.17 (4.32)
  • Minimum Bend Radius: in (mm)1.00 (25.40)
  • Weight: lbs/100 ft (kg/100 m)2.70 (4.00)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)13.00 (42.70)
  • Velocity of Propagation: 69.50%
  • Dielectric Voltage Rating: (kV, RMS)1.50
  • DC Resistance: ohms/1000 ft (m)24.20 (79.40)
  • Max Distance:* ft (m)236 (72)


Frequency Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 2.2/3.0 (7.2/9.8)
@100 MHz 7.1/8.2 (23.3/26.9)
