E51428 - CAT 5e Ethernet Cable (Quadraxial)

The E51428 is a 100 Base-T Quadrax cable specially designed for airborne applications as defined by ARINC Specification 664. The overall design of E51428 allows a smaller overall diameter and weight while exceeding Category 5e requirements. The E51428’s construction of silver-plated high-strength copper alloy conductors is surrounded by a solid PFA insulation assuring uniform conductivity with excellent solderability. The 80% braided shielding provides shielding to preserve technical performance. A PTFE laser-markable jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation.

E51428 Product Bulletin

E51428 Burn Test Data

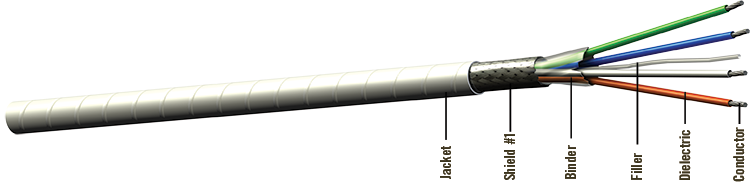

Cable Construction

  • Conductor: Silver-Plated High Strength Copper Alloy
  • Dielectric: PFA
  • Binder: PTFE Tape
  • Shield #1: Silver-Plated Copper Round Braid
  • Jacket: PTFE, White (Laser-Markable)

Color Codes

  • Pair #1: White/Blue
  • Pair #2: Orange/Green

Physical Data

  • Conductor:28 AWG Stranded SPHSCA
  • Shield Coverage:80% (Braid)% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.12 (2.92)
  • Minimum Bend Radius: in (mm)0.60 (15.24)
  • Weight: lbs/100 ft (kg/100 m)1.00 (1.50)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)14.50 (47.60)
  • Velocity of Propagation: 70.00%
  • Dielectric Voltage Rating: (kV, RMS)1.50
  • DC Resistance: ohms/1000 ft (m)74.80 (245.40)
  • Max Distance:* ft (m)170 (51)


Frequency  Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 3.7/4.1 (12.1/13.4)
@100 MHz 11.1/12.4 (36.4/40.7)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data

Get Spec Sheet
