E5E1724 - Power over Ethernet Cable

The E5E1724 is a CAT5e Power over Ethernet (PoE) cable specially designed for airborne applications as defined by ARINC Specification 664. The E5E1724 data pairs are manufactured using a high-temp fluoropolymer and will perform at frequencies from CAT 5e, up to CAT 6a requirements. The E5E1724’s twisted-pair construction (two separate pairs) of tin-plated copper conductors is surrounded by FEP insulation and 100% foil and 85% braided shielding assure uniform conductivity with excellent solderability, further protecting against EMI. An ETFE laser markable jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation.

E5E1724 Product Bulletin

E5E1724 Burn Test Data

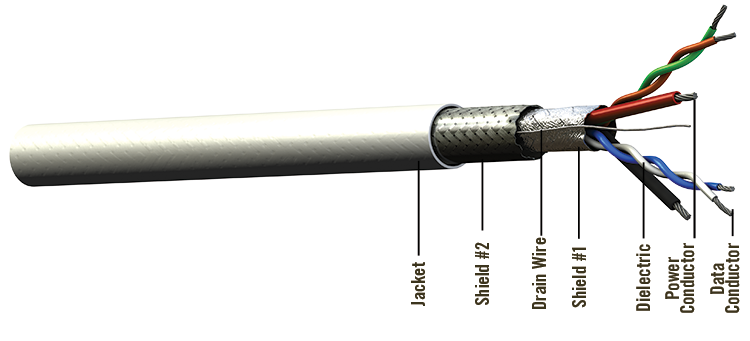

Cable Construction

  • Data Conductor: Tin-Plated Copper
  • Power Conductor: Tin-Plated Copper
  • Dielectric: FEP
  • Shield #1: Aluminum/Polyimide Foil
  • Drain Wire:  Tin Plated Copper
  • Shield #2: Tin-Plated Copper Braid
  • Jacket: ETFE, White (Laser Markable)

Color Codes

  • Pair #1: White/Blue
  • Pair #2: Orange/Green
  • Power Pair: Red, Black

Physical Data

  • Conductor:Data Pair: 24 AWG Stranded TPC Power Pair: 22 AWG Stranded TPC
  • Shield Coverage:100% Foil / 85% Braid
  • Temperature Range: -55/150°C
  • Outer Diameter: in (mm)0.21 (5.28)
  • Minimum Bend Radius: in (mm)1.00 (25.40)
  • Weight: lbs/100 ft (kg/100 m)3.56 (5.30)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)13.00 (42.70)
  • Velocity of Propagation: 80.00%
  • Dielectric Voltage Rating: (kV, RMS)0.90
  • DC Resistance: ohms/1000 ft (m)26.20 (86.00)
  • Max Distance:* ft (m)257 (78)


Frequency  Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 2.3 / 2.7 (7.5 / 8.9)
@100 MHz 6.8 / 7.5 (22.3 / 24.6)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data
