E5E3624 - CAT 5e Ethernet Cable (Power over Ethernet (PoE))

The E5E3624 is a CAT5e Power over Ethernet (PoE) cable specially designed for airborne applications as defined by ARINC Specification 664. The E5E3624 data pairs are manufactured using a high-temp fluoropolymer and will perform at frequencies from CAT 5e, up to CAT 6a requirements. The E5E3624’s twisted-pair construction (two separate pairs) of silver-plated copper conductors is surrounded by PFA insulation assuring uniform conductivity with excellent solderability. The 100% foil and 90% braided shielding assures uniform conductivity with excellent solderability, further protecting against EMI. A PTFE laser markable jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation.

E5E3624 Product Bulletin

E5E3624 Burn Test Data

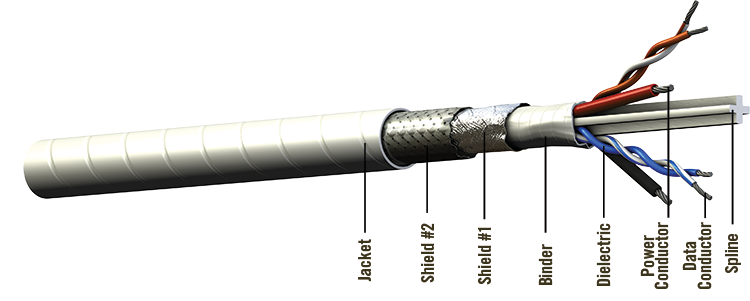

Cable Construction

  • Data Conductor: Silver-Plated Copper-Alloy
  • Power Conductor: Silver-Plated Copper
  • Dielectric: PFA
  • Spline: Fluoropolymer
  • Binder: PTFE Tape
  • Shield #1: Aluminum/Polyimide Foil
  • Shield #2: Silver-Plated Copper Braid
  • Jacket: PTFE Tape, Dual Layer White (Laser Markable)

Color Codes

  • Pair #1: White/Blue
  • Pair #2: Orange, White/Orange Stripe
  • Power Pair: Red, Black

Physical Data

  • Conductor:Data Pair: 24 AWG Stranded SPCA Power Pair: 20 AWG Stranded SPC
  • Shield Coverage:100% Foil / 90% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.25 (6.35)
  • Minimum Bend Radius: in (mm)0.80 (20.32)
  • Weight: lbs/100 ft (kg/100 m)4.50 (6.70)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)14.00 (46.00)
  • Velocity of Propagation: 70.00%
  • Dielectric Voltage Rating: (kV, RMS)1.50
  • DC Resistance: ohms/1000 ft (m)28.50 (93.50)
  • Max Distance:* ft (m)268 (82)


Frequency  Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 2.2/2.6 (7.2/8.5)
@100 MHz 6.8/8.2 (22.3/26.9)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data

Get Spec Sheet
