E60224 - CAT 5e Ethernet Cable (1 Data Pair)

The E60224 is a 1 pair, 10/100 Base-T CAT5e cable specially designed for airborne applications as defined by ARINC Specification 664. The E60224 cable is unshielded and designed for specific entertainment systems not requiring shielding. Without the shield, termination time and weight are reduced. The twisted-pair construction of silver-plated copper conductors assures uniform conductivity with excellent solderability. A laser-markable ETFE jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation.

E60224 Product Bulletin

E60224 Burn Test Data

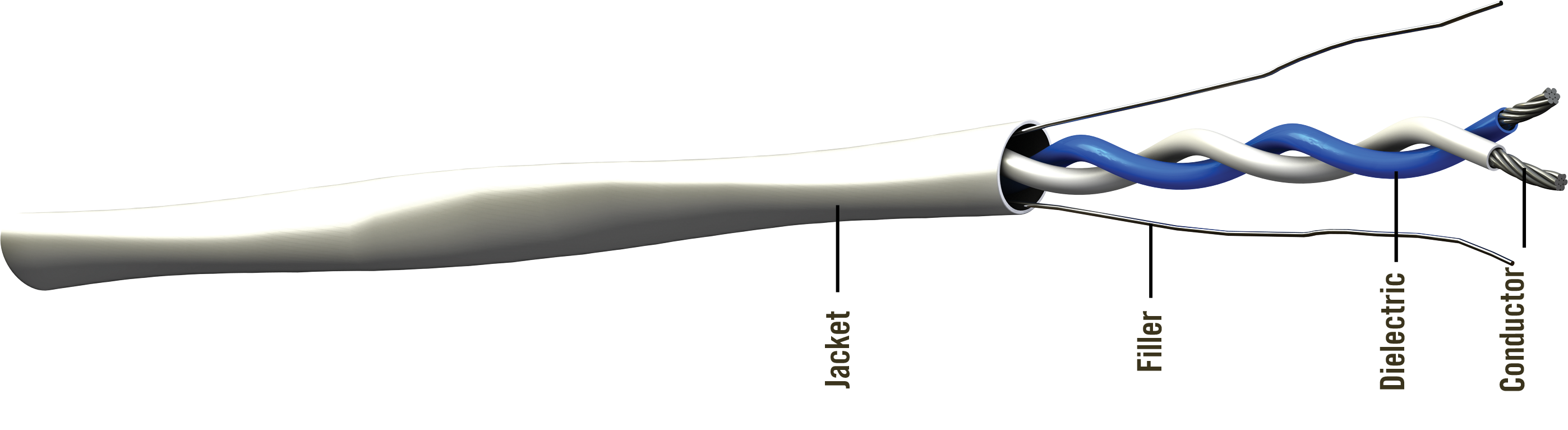

Cable Construction

  • Conductor: Silver-Plated Copper
  • Dielectric: FEP
  • Fillers: Fluoropolymer
  • Jacket: ETFE, White (Laser-Markable)

Color Codes

  • Pair #1: White/Blue

Physical Data

  • Conductor:24 AWG Stranded SPC
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.10 (2.59)
  • Minimum Bend Radius: in (mm)0.60 (15.24)
  • Weight: lbs/100 ft (kg/100 m)0.90 (1.30)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)14.50 (47.60)
  • Velocity of Propagation: 70.00%
  • Dielectric Voltage Rating: (kV, RMS)1.50
  • DC Resistance: ohms/1000 ft (m)28.50 (93.50)


Frequency Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 1.9/2.4 (6.2/7.9)
@100 MHz 7.2/8.0 (23.6/26.2)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data
