E74824 - CAT 7 (Class F) Ethernet Cable (4 Data Pair)

The E74824 is a 4 pair, 10G Base-T Cat 7 cable that incorporates an innovative design that provides maximum electrical performance in a small, lightweight, flexible package. Each pair uses a silver-plated copper alloy conductor and is individually shielded. The E74824 cable delivers 10 Gb performance per ISO 11801, Class F Channel requirements. An ETFE laser markable jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation. E74824 is suitable for airborne 10G Base-T CAT7 Local Area Network applications such as cabin management systems (CMS), in-flight entertainment (IFE), and Ethernet backbones.

E74824 Product Bulletin

E74824 Burn Test Data

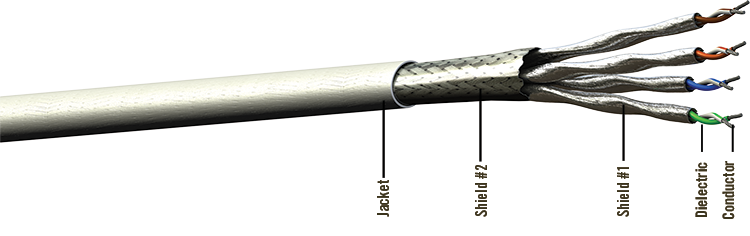

Cable Construction

  • Conductor: Silver-Plated Copper Alloy
  • Dielectric: FEP
  • Shield #1: Aluminum/Polyester Foil (Each Pair)
  • Shield #2: Silver-Plated Copper Braid
  • Jacket: ETFE, White (Laser Markable)

Color Codes

  • Pair #1: Blue, White/Blue Stripe
  • Pair #2: Orange, White/Orange Stripe
  • Pair #3: Green, White/Green Stripe
  • Pair #4: Brown, White/Brown Stripe

Physical Data

  • Conductor:24 AWG Stranded SPCA
  • Shield Coverage:100% Foil / 90% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.28 (7.11)
  • Minimum Bend Radius: in (mm)2.20 (55.88)
  • Weight: lbs/100 ft (kg/100 m)4.70 (7.00)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)13.00 (42.70)
  • Velocity of Propagation: 78.00%
  • Dielectric Voltage Rating: (kV, RMS)0.90
  • DC Resistance: ohms/1000 ft (m)28.40 (93.20)
  • Max Distance:* ft (m)296 (90)


Frequency  Nom/Max dB/100 ft Nom/Max (dB/100 m)
@100 MHz 6.6/7.0 (21.7/23.0)
@250 MHz 10.8/11.4 (35.4/37.4)
@500 MHz 15.7/16.6 (51.5/54.5)
@600 MHz 17.5/18.4 (57.4/60.4)

Spec Sheet Builder

E74824 Connectors

Select one or more connector files to download directly or add to your compiled pdf document.

Connector TypeDescriptionPart NumberTermination InstructionsAdd to Spec Sheet
RJ45 For 4 Pair Cables90 Deg Plug w/ATUM Strain Relief (Cat 6a)110900 (568B)T-110900
90 Deg Plug w/ATUM Strain Relief (Cat 6a)110912 (568A)T-110912
Jack w/ATUM Strain Relief (Cat 6a)110937T-110937
Jack w/ATUM Strain Relief (Cat 6a)110938T-110938
Plug w/Clamp Nut Strain Relief (Cat 6a)110973T-110973
Plug w/Clamp Nut Strain Relief (Cat 6a)110975T-110975
Plug w/Clamp Nut Strain Relief (Cat 8 ‐ 568B Only)111107T-111107
Jack w/ATUM Strain Relief (Cat 8 ‐ 568A & 568B)111109T-111109
Shielded CAT 6a, Plug w/ATUM Strain Relief111179T-111179
Shielded CAT 6a, Plug w/Strain Relief Sleeve111180T-111180
Shielded CAT 6a, Plug w/Protective Boot111181T-111181
