F20424 - Fiber Channel Cable (1 Data Pair)

F20424 is a 150 Ohm quad fiber channel cable specifically designed for airborne high-speed data applications. Each conductor is surrounded by a foam fluoropolymer insulation and is designed to be terminated in ARINC 600 and 38999 quadrax contacts A fluoropolymer jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation. F20424 is an approved cable by Honeywell for the EPIC/APEX System.

F20424 Product Bulletin

F20424 Burn Test Data

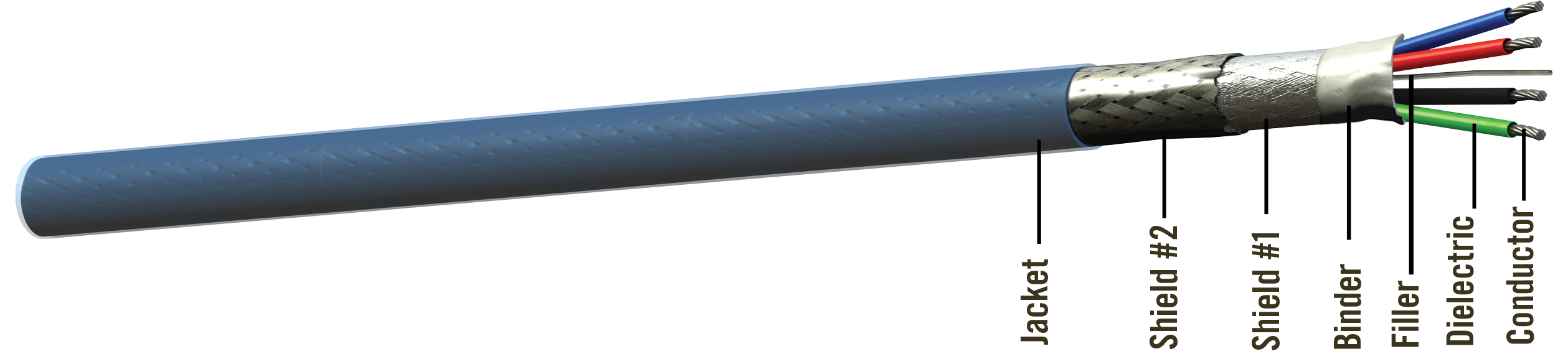

Cable Construction

  • Conductor: Silver-Plated High Strength Copper Alloy
  • Dielectric: FEP
  • Filler: Fluoropolymer
  • Binder: PTFE Tape
  • Shield #1: Aluminum/Polyester Foil
  • Shield #2: Tin-Plated Copper Braid
  • Jacket: FEP, Blue
../CableConstructionImageAltText

Color Codes

  • Pair #1: Red, Black
  • Pair #2: Blue, Green

Physical Data

  • Conductor:24 AWG Stranded SPHSCA
  • Shield Coverage:100% Foil / 90% Braid
  • Temperature Range: -55/150°C
  • Outer Diameter: in (mm)0.24 (6.15)
  • Minimum Bend Radius: in (mm)1.20 (30.48)
  • Weight: lbs/100 ft (kg/100 m)3.65 (5.40)

Electrical Data

  • Impedance: ohms150
  • Capacitance: pF/ft (m)8.50 (27.90)
  • Velocity of Propagation: 80.00%
  • Dielectric Voltage Rating: (kV, RMS)0.90
  • DC Resistance: ohms/1000 ft (m)26.20 (86.00)

Attenuation

Frequency        Nom       dB/100 ft (m)
@10 MHz 1.6 (5.2)
@100 MHz 5.2 (17.1)
@500MHz 11.5 (37.7)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data
