S65161-A
S65161-A - 50 Ohm Coaxial RF Cable
S65161-A is a 50 Ohm coaxial cable and the industry’s workhorse, with decades of proven performance in the aerospace and defense markets. The S65161-A features a 100% shielded construction, incorporating both silver-plated copper spiral (inner) and braided (outer) shields. The electrical characteristics of S65161-A are comparable to standard RG393 coax cable, yet S65161-A weighs less than 25% of RG393 cable.

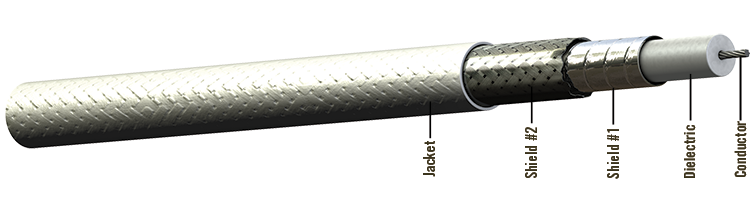

Cable Construction
- Conductor: Silver-Plated Copper
- Dielectric: PTFE
- Shield #1: Silver-Plated Flat Spiral Braid
- Shield #2:Silver-Plated Copper Braid
- Jacket: Extruded FEP, White (Laser-Markable)
Physical Data
- Conductor:16 AWG Stranded SPC
- Temperature Range: -65/150°C
- Outer Diameter: in (mm)0.20 (4.95)
- Minimum Bend Radius: in (mm)1.00 (25.40)
- Weight: lbs/100 ft (kg/100 m)3.50 (5.20)
Electrical Data
- Impedance: ohms50
- Capacitance: pF/ft (m)26.00 (85.30)
- Velocity of Propagation: 83.00%
- Time Delay: ns/ft (m)1.23 (4.04)
- Shielding Effectiveness: dB (min)-110
- Dielectric Voltage Rating: (kV, RMS)3.50
- DC Resistance: ohms/1000 ft (m)3.90 (12.80)
Attenuation
| Frequency | Nom/ Max dB/100 ft | Nom/ Max (dB/100 m) |
|---|---|---|
| @0.4 GHz | 5.1/5.6 | (16.7/18.4) |
| @1.0 GHz | 8.2/9.1 | (26.9/29.9) |
| @1.6 GHz | 10.5/11.6 | (34.4/38.1) |
| @5.0 GHz | 19.2/21.1 | (63.0/69.2) |
Formula for Attenuation:
(K1 × √F(MHz) + (K2 × F(MHz))
K Values (nom loss):
K1 =0.251 K2 =0.0003
Spec Sheet Builder
S65161-A Connectors
Select one or more connector files to download directly or add to your compiled pdf document.
| Connector Type | Description | Part Number | Termination Instructions | Add to Spec Sheet |
|---|---|---|---|---|
| 50 Ohm ARINC | 600 Size 1 | 190501A | T-1905XXA | |
| 600 Modified Size 1 | 190502A | T-1905XXA | ||
| ARINC 404/600 Size 5 | 190503 | T-190503 | ||
| 404 Size 1 | 190519A | T-1905XXA | ||
| 50 Ohm BNC | Straight Plug | 190512A | T-1905XXA | |
| 90° Plug | 190513A | T-1905XXA | ||
| 50 Ohm C Connectors | Straight Plug | 190506A | T-1905XXA | |
| 90° Plug | 190507A | T-1905XXA | ||
| 50 Ohm HN | Straight Plug | 190504A | T-1905XXA | |
| 90° Plug | 190505A | T-1905XXA | ||
| 50 Ohm N | Straight Plug | 190510A | T-1905XXA | |
| 90° Plug | 190511A | T-1905XXA | ||
| Bulkhead Jack | 190522A | T-1905XXA | ||
| Inline Jack | 190524A | T-1905XXA | ||
| 50 Ohm SMA | Straight Plug | 190514A | T-1905XXA | |
| SMA Straight Plug (Gold Plated) | 190514A-G | T-1905XXA-G | ||
| 90° Plug | 190515A | T-1905XXA | ||
| SMA Straight Plug (Gold Plated) | 190515A-G | T-1905XXA-G | ||
| SMA In-Line Straight Jack (Gold Plated) | 190525A-G | T-190525A-G | ||
| 50 Ohm TNC | Straight Plug | 190508A | T-1905XXA | |
| 90° Plug | 190509A | T-1905XXA | ||
| Bulkhead Jack | 190521A | T-1905XXA | ||
| Inline Jack | 190523A | T-1905XXA | ||
| 75° Plug | 190531A | T-1905XXA |
