S67163 - 50 Ohm Coaxial RF Cable
S67163 is a 50 Ohm coaxial cable and the industry’s workhorse, with decades of proven performance in the aerospace and defense markets. The construction of the S67163 features a multi-layered shielding that combines conventional shields with an inner braid woven of flat strip of silver plated copper which reduces attenuation at frequencies over 1GHz when compared to round wire braids in standard coaxial cable. The cable VSWR is lower because the braids can be applied more uniformly, providing more uniform coverage and reducing attenuation due to aging and flexure. When compared to Mil-Spec coax cable, the S67163 cable is approximately half the weight when compared to RG393 and less than one third the weight of RG214 coax cable.

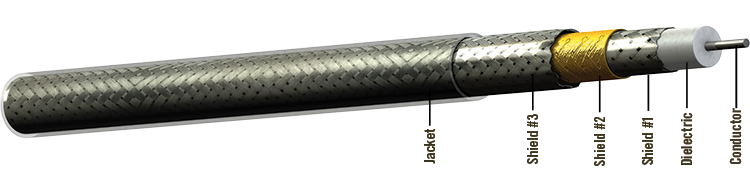

Cable Construction
- Conductor: Silver-Plated Copper
- Dielectric: PTFE
- Shield #1: Silver-Plated Copper Flat Strip Braid
- Shield #2: Aluminum/Polyimide Foil
- Shield #3:Silver-Plated Copper Braid
- Jacket: Extruded FEP, Clear
Physical Data
- Conductor:15 AWG Solid SPC
- Temperature Range: -55/200°C
- Outer Diameter: in (mm)0.23 (5.72)
- Minimum Bend Radius: in (mm)1.20 (30.48)
- Weight: lbs/100 ft (kg/100 m)5.40 (8.00)
Electrical Data
- Impedance: ohms50
- Capacitance: pF/ft (m)25.00 (82.00)
- Velocity of Propagation: 80.00%
- Time Delay: ns/ft (m)1.27 (4.17)
- Shielding Effectiveness: dB (min)-90
- Dielectric Voltage Rating: (kV, RMS)4.50
- DC Resistance: ohms/1000 ft (m)3.25 (10.70)
Attenuation
| Frequency | Nom/Max dB/100 ft | Nom/ Max (dB/100 m) |
|---|---|---|
| @0.4 GHz | 4.4/4.8 | (14.4/15.7) |
| @1.0 GHz | 7.0/7.7 | (23.0/25.3) |
| @1.6 GHz | 8.9/9.8 | (29.2/32.2) |
| @5.0 GHz | 16.1/17.7 | (52.8/58.1) |
Formula for Attenuation:
(K1 × √F(MHz) + (K2 × F(MHz))
K Values (nom loss):
K1 =0.215 K2 =0.0001785
Spec Sheet Builder
S67163 Connectors
Select one or more connector files to download directly or add to your compiled pdf document.
| Connector Type | Description | Part Number | Termination Instructions | Add to Spec Sheet |
|---|---|---|---|---|
| 50 Ohm ARINC | 600 Size 1 | 190501 | T-190XXX | |
| 600 Modified Size 1 | 190502 | T-190XXX | ||
| ARINC 404/600 Size 5 | 190503 | T-190503 | ||
| 404 Size 1 | 190519 | T-190XXX | ||
| Size 8 Socket | 190529 | T-190529 | ||
| 50 Ohm BNC | Straight Plug | 190512 | T-190XXX | |
| 90° Plug | 190513 | T-190XXX | ||
| 50 Ohm C Connectors | Straight Plug | 190506 | T-190XXX | |
| 90° Plug | 190507 | T-190XXX | ||
| 50 Ohm HN | Straight Plug | 190504 | T-190XXX | |
| 90° Plug | 190505 | T-190XXX | ||
| 50 Ohm N | Straight Plug | 190510 | T-190XXX | |
| 90° Plug | 190511 | T-190XXX | ||
| Bulkhead Jack | 190522 | T-190XXX | ||
| Inline Jack | 190524 | T-190XXX | ||
| 50 Ohm QMA | Straight Plug | 110580 | T-110580 | |
| 90° Plug | 110581 | T-110581 | ||
| 50 Ohm SMA | Bulkhead Jack | 111082 | T-111082 | |
| Straight Plug | 190514 | T-190XXX | ||
| 90° Plug | 190515 | T-190XXX | ||
| 50 Ohm TNC | Straight Plug | 190508 | T-190XXX | |
| 90° Plug | 190509 | T-190XXX | ||
| Bulkhead Jack | 190521 | T-190XXX | ||
| Inline Jack | 190523 | T-190XXX | ||
| 75° Plug | 190531 | T-190XXX |
