T12243 - Canbus Cable (1 Data Pair)

T12243 is a 125 ohm data bus cable that is designed with a dual-layer insulation reducing the size of the cable. The outer foamed fluoropolymer layer which can be removed so that the inner solid PFA accommodates the connector cavity for easy extraction of the contact. T12243 data bus cable approved and recommended by the Honeywell Commercial Flight Systems Group. It is a primary data interface for the Honeywell/Sperry SPZ-8000 DAFCS (including EFIS, AHRS and DADC) and is also used for CAN Bus communications for the Honeywell/ Sperry Primus II Radio System. T12243 is also an approved cable for the ASCB Data bus and Servo CAN Bus for the Primus EPIC/APEX Integrated Avionics system.

T12243 Product Bulletin

T12243 Burn Test Data

Cable Construction

  • Conductor: Silver-Plated High Strength Copper Alloy
  • Dielectric: Inner Layer: PFA   Outer Layer: FEP
  • Binder: PTFE Tape
  • Shield #1: Aluminum/Polyester Foil
  • Shield #2: Tin-Plated Copper Braid
  • Jacket: ETFE ,White (Laser Markable)

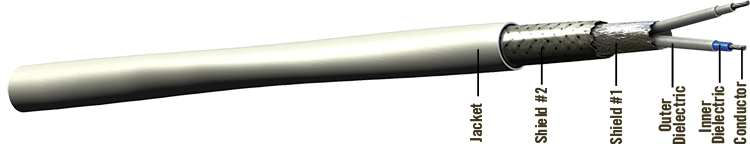

../CableConstructionImageAltText

Color Codes

  • Pair #1: White w/White Inner, White w/Blue Inner

Physical Data

  • Conductor:24 AWG Stranded SPHSCA
  • Shield Coverage:100% Foil / 90% Braid
  • Temperature Range: -55/150°C
  • Outer Diameter: in (mm)0.20 (4.95)
  • Minimum Bend Radius: in (mm)1.00 (25.40)
  • Weight: lbs/100 ft (kg/100 m)2.50 (3.70)

Electrical Data

  • Impedance: ohms125
  • Capacitance: pF/ft (m)11.00 (36.10)
  • Velocity of Propagation: 75.00%
  • Dielectric Voltage Rating: (kV, RMS)1.50
  • DC Resistance: ohms/1000 ft (m)27.50 (90.20)

Attenuation

Frequency Max dB/100 ft (m)
@10 MHz 2.0 (6.6)
@100 MHz 6.3 (20.7)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data
