T69654 - Canbus Cable (1 Data Pair)

The T69654 cable is a 125 ohm data bus cable approved and recommended by the Honeywell Commercial Flight Systems Group. It is an approved cable for the ASCB Data bus and Servo CAN Bus for the Primus EPIC/APEX Integrated Avionics system. T69654 is a primary data interface for the Honeywell/Sperry SPZ-8000 DAFCS which includes EFIS, AHRS and DADC. It is also used for CAN Bus communication for the Honeywell/ Sperry Primus II Radio System.

T69654 Product Bulletin

T69654 Burn Test Data

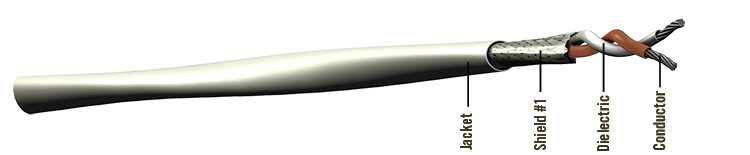

Cable Construction

  • Conductor: Silver-Plated High Strength Copper Alloy
  • Dielectric:  PTFE
  • Shield #1: Tin-Plated Copper Braid
  • Jacket: FEP, White

Color Codes

  • Pair #1: White, Brown

Physical Data

  • Conductor:24 AWG Stranded SPHSCA
  • Shield Coverage:90% Braid
  • Temperature Range: -55/150°C
  • Outer Diameter: in (mm)0.19 (4.75)
  • Minimum Bend Radius: in (mm)1.00 (25.40)
  • Weight: lbs/100 ft (kg/100 m)2.20 (3.30)

Electrical Data

  • Impedance: ohms125
  • Capacitance: pF/ft (m)12.00 (39.40)
  • Velocity of Propagation: 70.00%
  • Dielectric Voltage Rating: (kV, RMS)1.50
  • DC Resistance: ohms/1000 ft (m)28.40 (93.20)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data

Get Spec Sheet
