USB2422
USB2422 - USB 2.0 Cable

The USB2422 is a USB 2.0 cable specially designed for airborne application. The USB2422’s twisted-pair construction of silver-plated copper conductors is surrounded by PFA insulation. The 100% foil and 80% braided shielding assure uniform conductivity with excellent solderability, further protecting against EMI. An ETFE laser markable jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation. USB2422 meets or exceeds all EIA-364-XX specifications.

USB2422 Product Bulletin

USB2422 Burn Test Data

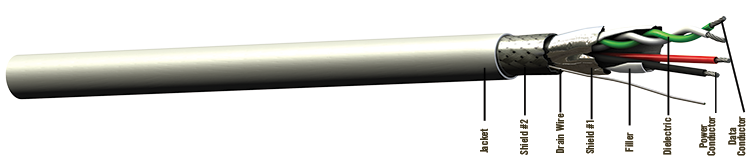

Cable Construction

  • Data Conductor: Silver-Plated Copper
  • Power Conductor:  Silver-Plated Copper
  • Dielectric: FEP
  • Drain Wire:  Silver-Plated Copper
  • Filler: PTFE Tape
  • Shield #1: Aluminum/Polyester Foil
  • Shield #2: Tin-Plated Copper
  • Jacket: ETFE , White (Laser Markable)
../CableConstructionImageAltText

Color Codes

  • Twisted Data Pair: Green/White
  • Power Pair: Black/Red

Physical Data

  • Conductor:24 AWG Stranded SPC
  • Power Wire: 22 AWG Stranded SPC
  • Drain Wire: 28 AWG SPC
  • Temperature Range: -55/150°C
  • Outer Diameter: in (mm)0.18 (4.57)
  • Minimum Bend Radius: in (mm)1.00 (25.40)
  • Weight: lbs/100 ft (kg/100 m)2.36 (3.51)

Electrical Data

  • Impedance: ohms90
  • Capacitance: pF/ft (m)13.00 (42.70)
  • Time Delay: ns/ft (m)1.39 (4.56)

Attenuation

Frequency  Nom Max
dB/ft		 Nom/Max
dB/M
@96 MHz 0.07/0.07 (0.21/0.24)
@200 MHz 0.10/0.11 (0.31/0.34)
@400 MHz 0.14/0.16 (0.47/0.52)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data
