V78209 - 75 Ohm Coaxial Cable
The V78209 75 ohm coaxial cable offers low VSWR and attenuation characteristics for high-definition digital video. The construction of V78209 includes a silver-plated copper center conductor, a foamed fluoropolymer dielectric and it is double-shielded with a braid of tin-plated copper and an aluminized 100% coverage wrapper. Because of the critical effect of impedance-matched terminations, a comprehensive family of 75-ohm connectors are available.

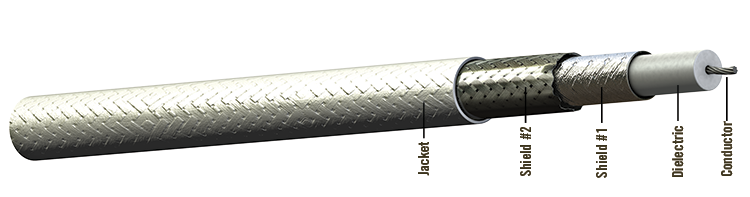

Cable Construction
- Conductor: Silver-Plated Copper
- Dielectric: FEP
- Shield #1: Aluminum/Polyimide Composite
- Shield #2: Silver-Plated Copper Braid
- Jacket: Extruded ETFE, White (Laser-Markable)
RECCOMENDED MAX TRANSMISSION LENGTHS
SMPTE 292M (HD-SDI): f(m) 210 (64)
SMPTE 424M (3G-SDI): f(m) 140 (43)
Physical Data
- Conductor:20 AWG Stranded SPC
- Temperature Range: -55/150°C
- Outer Diameter: in (mm)0.21 (5.36)
- Minimum Bend Radius: in (mm)1.10 (27.90)
- Weight: lbs/100 ft (kg/100 m)3.20 (4.70)
Electrical Data
- Impedance: ohms75
- Capacitance: pF/ft (m)16.50 (54.10)
- Velocity of Propagation: 80.00%
- Time Delay: ns/ft (m)1.27 (4.17)
- Shielding Effectiveness: dB (min)-90
- Dielectric Voltage Rating: (kV, RMS)4.00
- DC Resistance: ohms/1000 ft (m)9.19 (30.20)
Attenuation
| Frequency | Nom/Max dB/100 ft | Nom/Max (dB/100 m) |
|---|---|---|
| @0.40 GHz | 6.1/6.7 | (20.0/22.0) |
| @0.75 GHz | 8.6/9.4 | (28.2/30.8) |
| @1.5 GHz | 12.7/14.0 | (41.7/45.9) |
| @3.0 GHz | 19.0/21.0 | (62.3/68.9) |
Formula for Attenuation:
(K1 × √F(MHz) + (K2 × F(MHz))
K Values (nom loss):
K1 =0.282 K2 =0.0012
Spec Sheet Builder
V78209 Connectors
Select one or more connector files to download directly or add to your compiled pdf document.
| Connector Type | Description | Part Number | Termination Instructions | Add to Spec Sheet |
|---|---|---|---|---|
| 75 Ohm ARINC | Size 8 Socket 75 ohm | 190932 | T-1909XX | |
| Size 8 Pin 75 ohm | 190937 | T-1909XX | ||
| 75 Ohm BNC | HD Straight Plug | 110718 | T-110718 | |
| Straight Plug | 190912 | T-1909XX | ||
| 90° Plug | 190913 | T-1909XX | ||
| Bulkhead Jack | 190928 | T-1909XX | ||
| Mini Straight Plug | 190945 | T-1909XX | ||
| Mini 90° Plug | 190946 | T-1909XX | ||
| 75 Ohm DIN Connectors | 1.0/2.3 Plug | 110844 | T-110844 | |
| 75 Ohm M39029 | Size 8 Pin 75 ohm | 190940 | T-1909XX | |
| Size 8 Pin 75 ohm with seal | 190940-01 | T-1909XX | ||
| Size 8 Socket 75 ohm | 190941 | T-1909XX | ||
| Size 8 Socket 75 ohm with seal | 190941-01 | T-1909XX | ||
| 75 Ohm SMC | Female Plug | 190944 | T-1909XX | |
| 75 Ohm TNC | Straight Plug | 190908 | T-1909XX | |
| 90° Plug | 190909 | T-1909XX | ||
| Bulkhead Jack | 190921 | T-1909XX |
