E20424 - CAT 5e Ethernet Cable (2 Data Pair)

The E20424 is a 2 pair, 10/100 Base-T CAT5e cable specially designed for airborne applications as defined by ARINC Specification 664. The overall design of E20424 allows a smaller overall diameter and weight while retaining performance and required operating parameters. The E20424’s twisted-pair construction (two separate pairs) of silver-plated copper conductors is surrounded by dual-layer foamed/solid fluoropolymer dielectric that assures uniform conductivity with excellent solderability. Removal of the outer foamed layer reveals the inner solid insulation of a diameter compatible with conventional RJ45 connector terminations. The 100% foil (for each pair, as well as the entire cable) and 90% braided shielding assure uniform conductivity with excellent solderability, further protecting against EMI*. An FEP jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation.

*The individual pair foil shields are also isolated from the overall foil shield for additional protection.

E20424 Product Bulletin

E20424 Burn Test Data

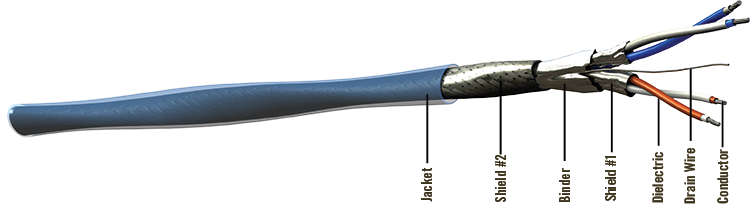

Cable Construction

  • Conductor: Silver-Plated Copper
  • Dielectric: Dual Layer FEP
  • Shield #1: Aluminum/Polyimide Foil (each pair)
  • Drain Wire: Tin-Plated Copper
  • Shield #2: Aluminum/Polyester
  • Shield #3: Silver-Plated Copper Braid
  • Jacket: FEP, Translucent Blue

Color Codes

  • Pair #1: White w/Blue Inner, Blue w/White Inner
  • Pair #2: Orange w/White Inner, White w/Orange Inner

Physical Data

  • Conductor:24 AWG Stranded SPC
  • Shield Coverage:100% Foil / 90% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.27 (6.73)
  • Minimum Bend Radius: in (mm)1.30 (33.02)
  • Weight: lbs/100 ft (kg/100 m)4.18 (6.20)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)13.40 (44.00)
  • Velocity of Propagation: 76.00%
  • Dielectric Voltage Rating: (kV, RMS)1.50
  • DC Resistance: ohms/1000 ft (m)28.50 (93.50)
  • Max Distance:* ft (m)296 (90)


Frequency Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 2.2/2.4 (7.2/7.9)
@100 MHz 7.6/8.0 (24.9/26.2)

Spec Sheet Builder

E20424 Connectors

Select one or more connector files to download directly or add to your compiled pdf document.

Connector TypeDescriptionPart NumberTermination InstructionsAdd to Spec Sheet
RJ45 For 4 Pair CablesShielded CAT 6, Plug w/Strain Relief Sleeve110303(E20424)T-110303-01
Shielded CAT 6, Plug w/Protective Boot110339T-110339
Shielded CAT 6, Plug w/ATUM Strain Relief (fits Amphenol (RJF) ruggedized backshell)110361T-110361
Shielded CAT 6, Plug w/ATUM Strain Relief110787T-110787
90 Deg Plug w/ATUM Strain Relief (Cat 6a)110900 (568B)T-110900
90 Deg Plug w/ATUM Strain Relief (Cat 6a)110912 (568A)T-110912
Jack w/ATUM Strain Relief (Cat 6a)110937T-110937
Jack w/ATUM Strain Relief (Cat 6a)110938T-110938
Plug w/Clamp Nut Strain Relief (Cat 6a)110973T-110973
Plug w/Clamp Nut Strain Relief (Cat 6a)110975T-110975
