S86208 - 50 Ohm Coaxial RF Cable
S86208 is a 50 Ohm coaxial cable and the industry’s workhorse, with decades of proven performance in the aerospace and defense markets. The S86208 features a low-loss PTFE expanded tape dielectric between the center conductor and shield, which improves shielding and strength compared to conventional wire braids. S86208 is a lightweight and more compact replacement for standard M17/128-RG400 coax cable. When compared to RG400, the S86208 coax cable is two-thirds the diameter and less than half the weight — 20 lbs vs 43 lbs per 1,000 ft.
*When using in high density D38999 connectors or in fully sealed environments, please contact PIC for assistance.

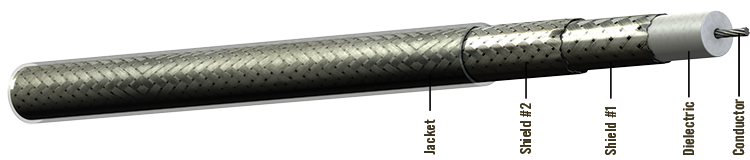

Cable Construction
- Conductor: Silver-Plated Copper
- Dielectric: PTFE
- Shield #1: Silver-Plated Copper Flat Strip Braid
- Shield #2:Silver-Plated Copper Braid
- Jacket: Extruded FEP, Clear
Physical Data
- Conductor:21 AWG Stranded SPC
- Temperature Range: -55/200°C
- Outer Diameter: in (mm)0.13 (3.30)
- Minimum Bend Radius: in (mm)0.65 (16.51)
- Weight: lbs/100 ft (kg/100 m)2.00 (2.90)
Electrical Data
- Impedance: ohms50
- Capacitance: pF/ft (m)25.00 (82.00)
- Velocity of Propagation: 80.00%
- Time Delay: ns/ft (m)1.27 (4.17)
- Shielding Effectiveness: dB (min)-80
- Dielectric Voltage Rating: (kV, RMS)2.50
- DC Resistance: ohms/1000 ft (m)11.60 (38.10)
Attenuation
| Frequency | Nom/ Max dB/100 ft | Nom/ Max (dB/100 m) |
|---|---|---|
| @0.4 GHz | 8.9/9.8 | (29.2/32.2) |
| @1.0 GHz | 14.1/15.5 | (46.3/50.9) |
| @1.6 GHz | 17.9/19.7 | (58.7/64.6) |
| @5.0 GHz | 32.0/35.2 | (105.0/115.5) |
Formula for Attenuation:
(K1 × √F(MHz) + (K2 × F(MHz))
K Values (nom loss):
K1 =0.44 K2 =0.000179
Spec Sheet Builder
S86208 Connectors
Select one or more connector files to download directly or add to your compiled pdf document.
| Connector Type | Description | Part Number | Termination Instructions | Add to Spec Sheet |
|---|---|---|---|---|
| 50 Ohm ARINC | 600 Size 1 | 190801 | T-1908XX | |
| 600 Modified Size 1 | 190802 | T-1908XX | ||
| 404/600 Size 5 | 190803 | T-1908XX | ||
| 404 Size 1 | 190819 | T-1908XX | ||
| Size 8 Socket | 190829 | T-1908XX | ||
| Size 8 Pin | 190837 | T-1908XX | ||
| 50 Ohm BNC | Straight Plug | 190812 | T-1908XX | |
| 90° Plug | 190813 | T-1908XX | ||
| 50 Ohm C Connectors | Straight Plug | 190806 | T-1908XX | |
| 90° Plug | 190807 | T-1908XX | ||
| 50 Ohm D-SUB | Size 8 Socket | 110212 | T-Dsub50 | |
| Precision 50 Ohm Size 8 Socket | 110260 | T-Dsub50 | ||
| Size 8 Pin | 110286 | T-Dsub50 | ||
| Precision 50 Ohm Size 8 Pin | 111113 | T-Dsub50 | ||
| 50 Ohm HN | 90° Plug | 190805 | T-1908XX | |
| 50 Ohm M39029 | Size 12 Socket | *190867 | T-190867 | |
| Size 8 Pin | 190838 | T-1908XX | ||
| Size 8 Pin w/Enviro Seal | 190838-01 | T-1908XX | ||
| Size 8 Socket | 190839 | T-1908XX | ||
| Size 8 Socket w/Enviro Seal | 190839-01 | T-1908XX | ||
| Size 12 Pin | 190866 | T-190866 | ||
| 50 Ohm N | Straight Plug | 190810 | T-1908XX | |
| 90° Plug | 190811 | T-1908XX | ||
| Bulkhead Jack | 190822 | T-1908XX | ||
| 50 Ohm QMA | Straight Plug | 110566 | T-110566 | |
| 90° Plug | 110567 | T-110567 | ||
| 50 Ohm SMA | Straight Plug | 190814 | T-1908XX | |
| 90° Plug | 190815 | T-1908XX | ||
| Inline Jack | 190825 | T-1908XX | ||
| 50 Ohm TNC | Straight Plug | 190808 | T-1908XX | |
| 90° Plug | 190809 | T-1908XX | ||
| 90° Plug (Long) | 190809-L | T-190809-L | ||
| Bulkhead Jack | 190821 | T-1908XX |
