D620222
D620222 - Databus Cable (1 Data Pair)

D620222 is a 70 Ohm specially designed cable for ARINC 429 data bus systems. D620222 has been designed with a high temperature, laser-markable white ETFE jacket which saves time, eliminating the need to label the cable every 6 inches or so as required by numerous cabling standards.

D620222 Product Bulletin

D620222 Burn Test Data

Cable Construction

  • Conductor: Tin-Plated Copper
  • Dielectric: ETFE
  • Shield #1: Tin-Plated Copper Braid
  • Jacket: ETFE, White (Laser Markable)

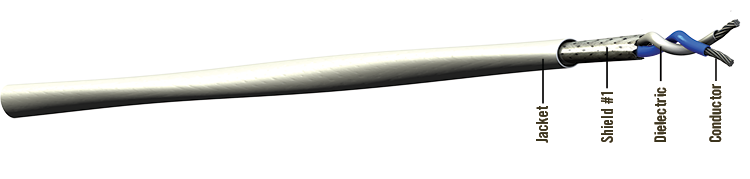

../CableConstructionImageAltText

Color Codes

  • Pair #1: White, Blue

Physical Data

  • Conductor:22 AWG Stranded TPC
  • Shield Coverage:95% Braid
  • Temperature Range: -55/150°C
  • Outer Diameter: in (mm)0.16 (4.06)
  • Minimum Bend Radius: in (mm)0.80 (20.32)
  • Weight: lbs/100 ft (kg/100 m)2.00 (3.00)

Electrical Data

  • Impedance: ohms70
  • Capacitance: pF/ft (m)24.00 (78.70)
  • Velocity of Propagation: 70.00%
  • Dielectric Voltage Rating: (kV, RMS)1.50
  • DC Resistance: ohms/1000 ft (m)15.80 (51.80)

Attenuation

Frequency  Nom/ Max dB/100 ft (m)
@1 MHz 0.8 (1.2)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data

Get Spec Sheet

Get a quote for D620222
