USB-C Assemblies

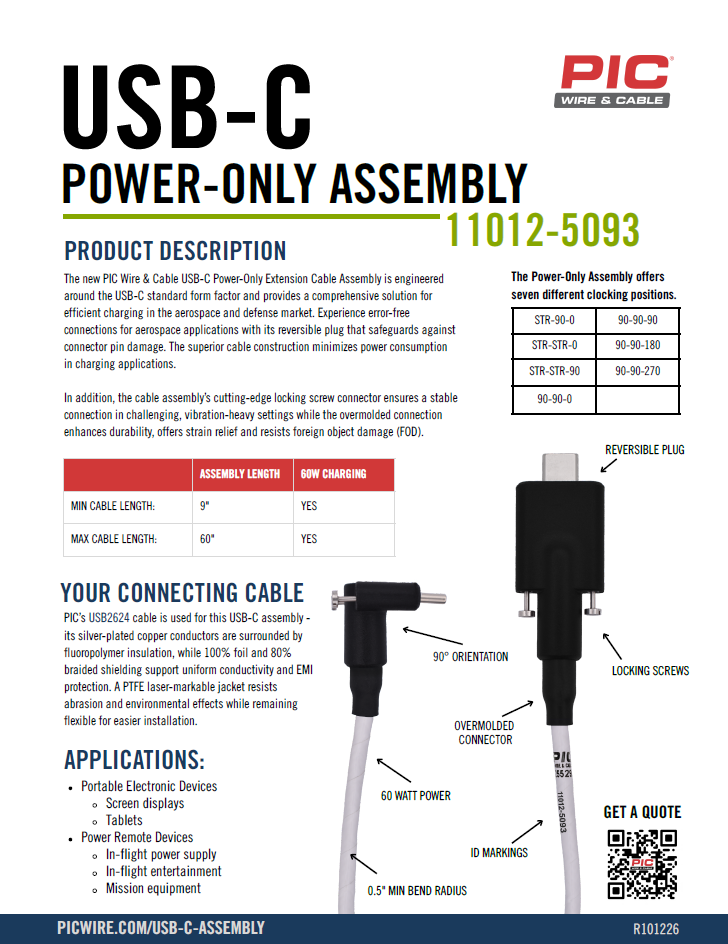

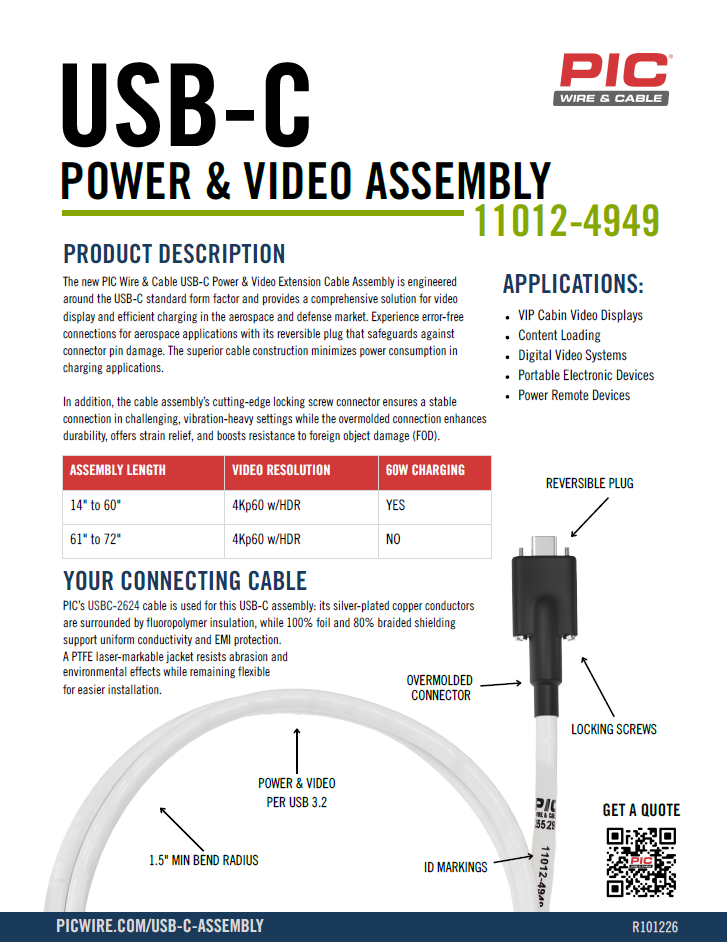

PIC Wire & Cable now offers two USB‑C Extension Cable Assembly options for aerospace and defense applications: Power & Video (11012-4949) and Power-Only (11012-5093). The USB‑C Power & Video Assembly combines 4K video capability with efficient power delivery in a rugged, aerospace-ready solution. The USB‑C Power-Only Assembly provides up to 60W of charging power and can be configured in seven different clocking positions with either a straight or 90-degree connector.
Both options utilize a reversible plug that helps safeguard against connector-pin damage, while superior cable construction supports efficient power delivery in charging applications. In addition, the assembly’s locking-screw overmolded design helps maintain a stable connection in challenging, vibration-heavy environments, offers strain relief, and improves resistance to foreign object damage (FOD).
Typical Applications
11012-5093
Power-Only
- Portable Electronic Devices
- Screen displays
- Tablets
- Power Remote Devices
- In-flight power supply
- In-flight entertainment
- Mission equipment
Seals the assembly for increased durability, strain relief, and added resistance to shock, vibration, and FOD.

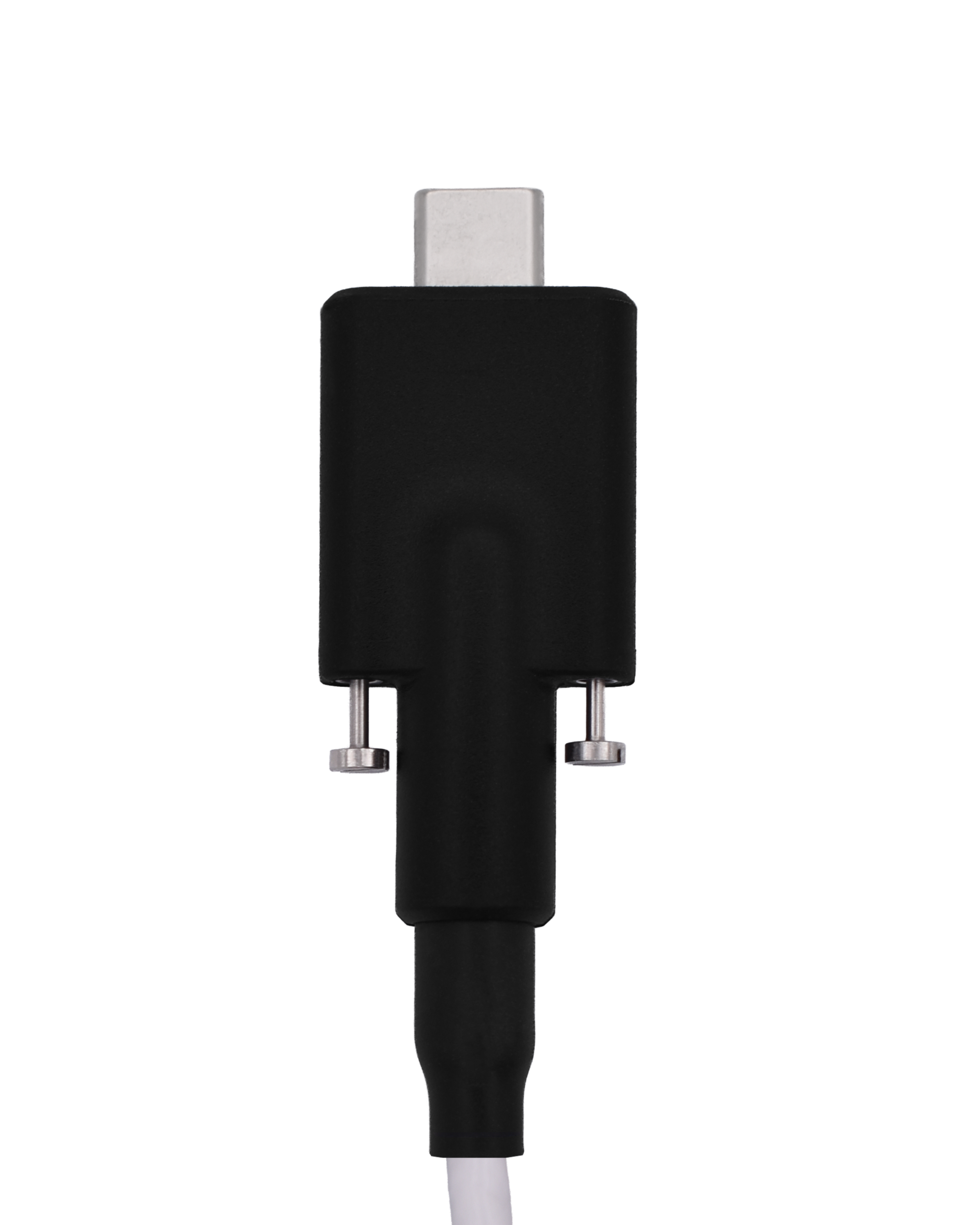

Cannot be inserted the wrong way, safeguarding against connector pin damage in aerospace applications.
Solution for resilient performance under vibration.

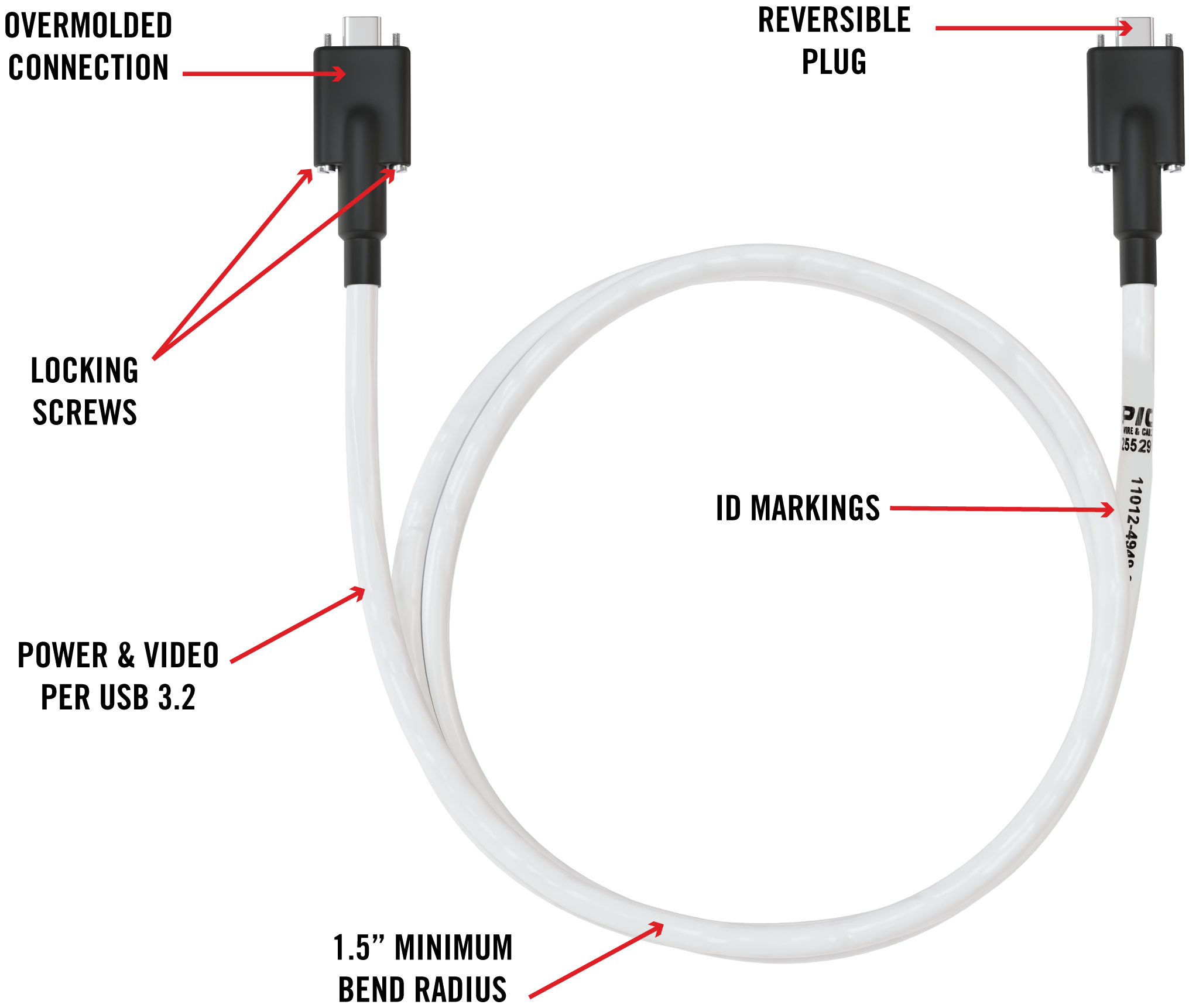

This cable assembly handles power and video all-in-one to reduce cable runs. 14"-60" @ 4Kp60; 60W charging. 60"-72" @ 4Kp60; no charging.
This is the minimum bend radius for this cable without compromising quality and performance.
Clear ID markings meet aerospace traceability standards.
Seals the assembly for increased durability, strain relief, and added resistance to shock, vibration, and FOD.
Cannot be inserted the wrong way, safeguarding against connector pin damage in aerospace applications.

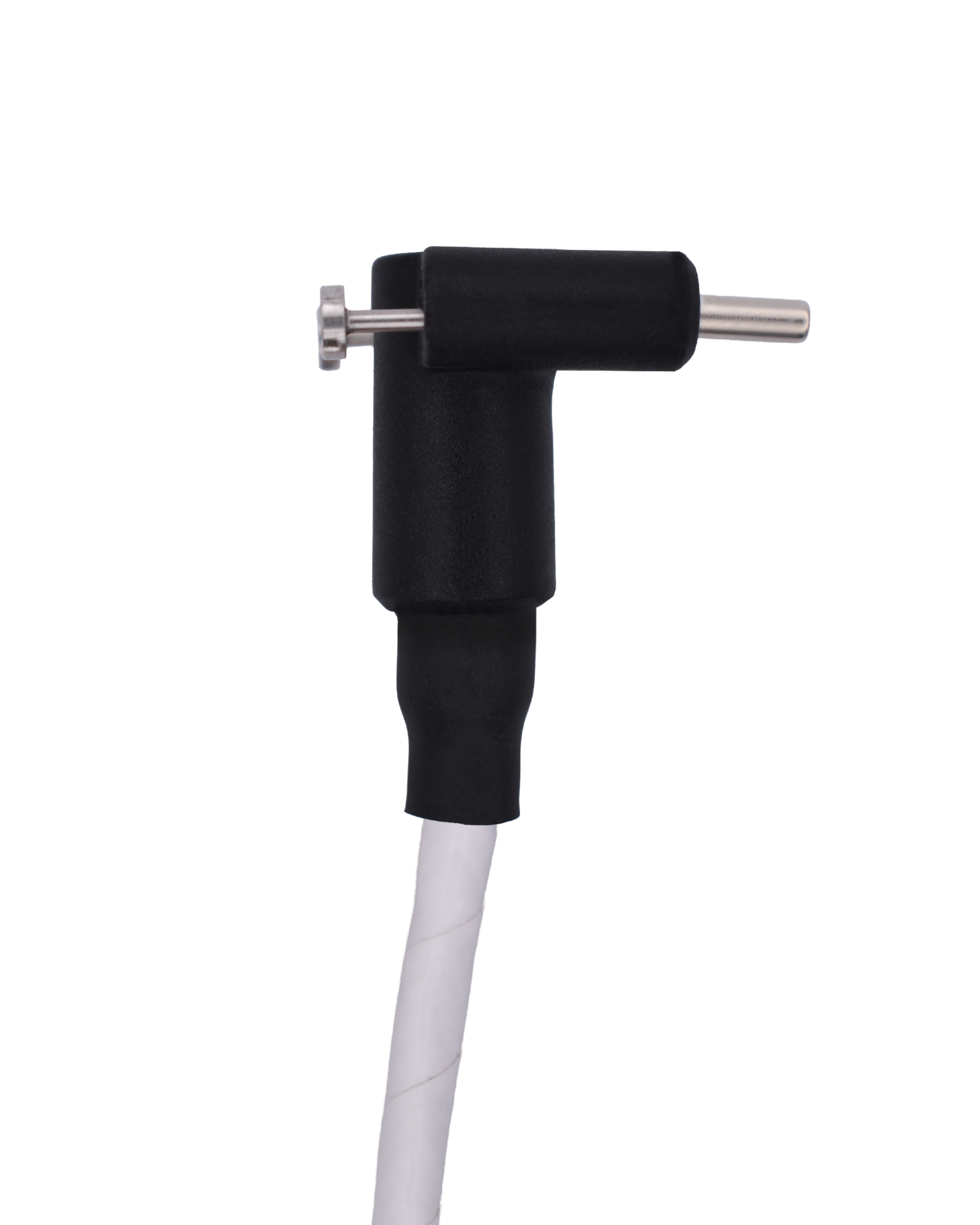

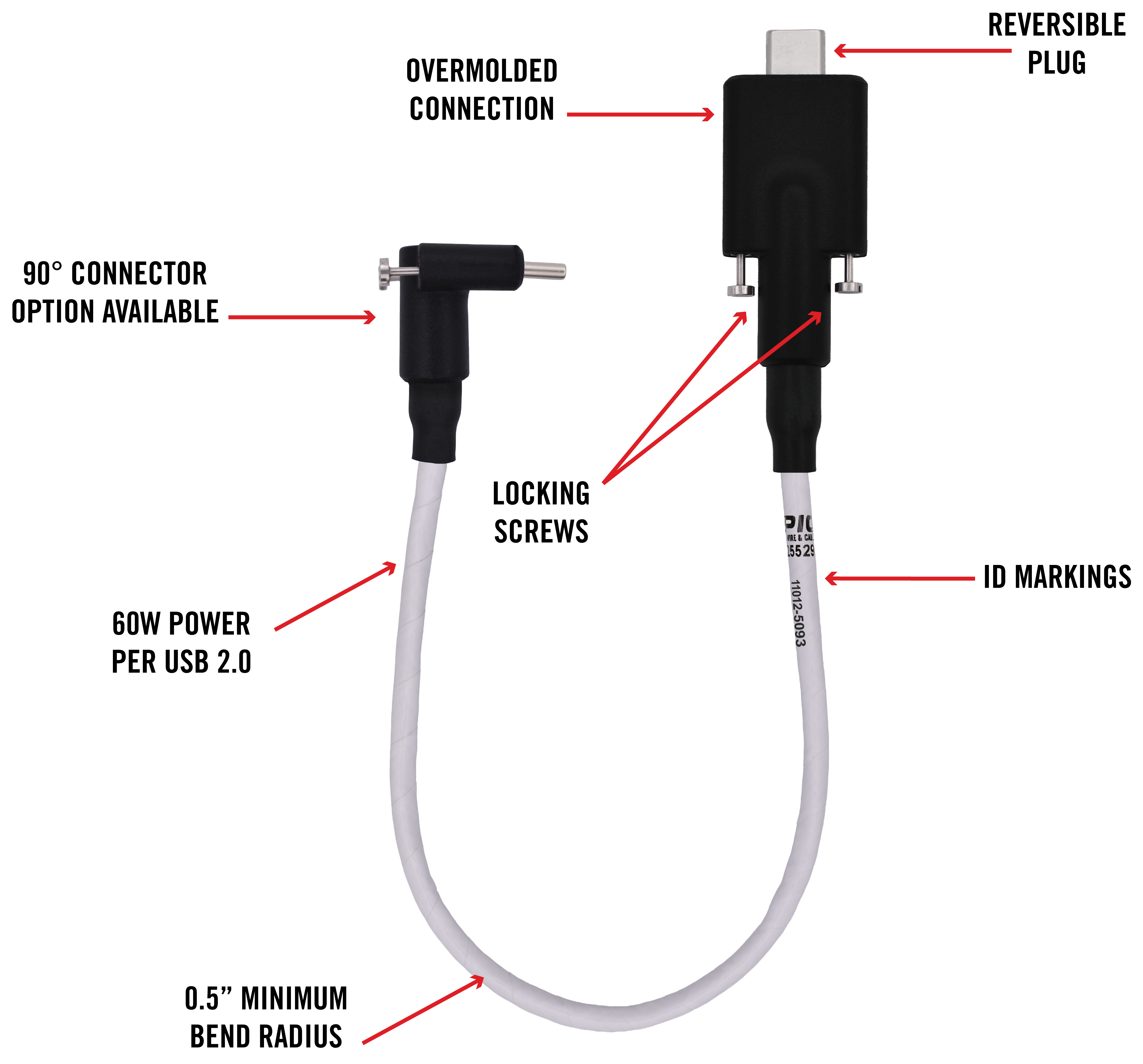

Choose from seven different clocking positions and find the one that fits your application best.
Solution for resilient performance under vibration.
Cable assembly handles up to 60W power on assemblies at 9" minimum and 60" maximum lengths. Contact us for more information.
Clear ID markings meet aerospace traceability standards.
Easier to install in hard-to-reach places, providing faster terminations without compromising quality.
REQUEST MORE INFORMATION ON THIS NEW EMERGING MARKET TECHNOLOGY Contact Us Today
Your Connecting Cables
PIC’s USB2624 cable is used for the USB-C Power-Only Extension Cable Assembly (11012-5093) - its silver-plated copper conductors are surrounded by fluoropolymer insulation, while 100% foil and 80% braided shielding support uniform conductivity and EMI protection. A PTFE laser-markable jacket resists abrasion and environmental effects while remaining flexible for easier installation.
The USB-C Power & Video Extension Cable Assembly (11012-4949) uses the USBC-2624 cable - contact us for more information.
USB2624 Cable Construction
Overmolding is the specialized high-performance manufacturing process that involves injecting a protective, durable polymer material directly around a connector and cable assembly to create a single, sealed and ruggedized component. Once encapsulated, it provides increased durability, strain relief and helps resist shock and vibration. During our overmolding process, we incorporate a copolymer (a copolymer is derived from two or more different types of monomers) allowing for tailored, specialized properties we spec out to meet both the electrical and mechanical performance needs of this USB-C Cable Assembly. Our highly skilled technicians prepare the assembly, aligning the locking screws into the mold cavity to ensure correct positioning, then utilize injection molding and remove any FOD for final testing and quality inspection of the part.
We assemble cables and connectors to maximize their mechanical and electrical performance while preserving signal integrity. We design complete connectivity solutions to meet or exceed your design challenges through:
- Customized connectivity solutions
- Turnkey pre-engineered assemblies
- Rapid in-house assembly services
- In-stock component availability
- Extensive range of connector products
- Full technical support available at your fingertips
- IPC-620 certified technicians ensure expert assembly
- Quality overmolding and automation processes
- Laser marking for custom labeling
- Complete lot traceability with serialization
- Specially designed precision tooling for demanding applications
- Assemblies are tested to meet system specifications, maintain quality and ensure reliability*
- Test data is sent with every assembly and retained for future reference
We utilize a wide variety of engineering experience, skills and capabilities to design, manufacture, test and assemble harnesses and assemblies. Once we terminate, we complete third party testing for: environment, electrical, mechanical testing for shock and vibration, and EWIS. And we have the specialized onsite ability to test for: phase-matched assemblies for use in TCAS, SATCOM, ESA and other antenna systems, phase stability, TDR/Fault Finding, Ethernet channel testing up to ISO 11801 – Class F, DVI production testing, VSWR testing and reporting, and we self-certify HDMI® (4-port, S-parameter testing) and HDMI Eye Diagrams. Our team meets the ever-growing demand for high-performing connectivity solutions specifically engineered to meet the sophisticated demands of modern aerospace and defense applications. * Contact us for more information on our testing capabilities.
