DV0824
DV0824 - CAT 5e Ethernet Cable (4 Data Pair)

The DV0824 is a shielded 4-Pair, 1000 Base-T ethernet cable that incorporates innovative design features to provide maximum electrical performance in a small, lightweight, and flexible package. The DV0824’s twisted-pair construction (four separate pairs) effectively reduces inductive interference while the 100% foil and 90% braided shielding serve to further protect against EMI. The low skew between each pair ensures the signal sent down each pair reaches the other end at approximately the same time. Conductor insulation consists of foamed fluoropolymer, having a higher velocity of propagation. This assures correct impedance matching, thus minimizing reflection — important in high-speed data applications. Each pair is individually shielded and jacketed to provide isolation between pairs. The ETFE jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation.

DV0824 Product Bulletin

DV0824 Burn Test Data

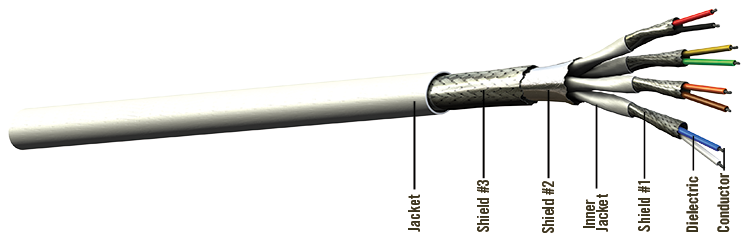

Cable Construction

  • Conductor: Silver-Plated High Strength Copper Alloy
  • Dielectric: FEP
  • Shield #1: Silver-Plated Copper Round Braid (each pair)
  • Shield #2: Aluminum/Polyester/Aluminum Foil
  • Shield #3: Silver-Plated Copper Braid
  • Inner Jacket: ETFE, White
  • Jacket: ETFE, White (Laser Markable)
../CableConstructionImageAltText

Color Codes

  • Pair #1: White/Blue
  • Pair #2: Yellow/Green
  • Pair #3: Red/Black
  • Pair #4: Orange/Brown

Physical Data

  • Conductor:24 AWG Stranded SPCA
  • Shield Coverage:100% Foil / 80% (Individually Shielded Braid), 95% (Overall)% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.35 (8.89)
  • Minimum Bend Radius: in (mm)1.75 (44.45)
  • Weight: lbs/100 ft (kg/100 m)7.70 (11.50)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)13.00 (42.70)
  • Velocity of Propagation: 80.00%
  • Dielectric Voltage Rating: (kV, RMS)0.90
  • DC Resistance: ohms/1000 ft (m)28.50 (93.50)

Attenuation

Frequency Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 2.4/2.7 (7.9/8.9)
@100 MHz 8.2/8.8 (26.9/28.9)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data

Get Spec Sheet

Get a quote for DV0824
