DVI1226 - Digital Video Interface Cable
PIC’s Aerospace-grade DVI1226 cable is engineered for demanding airborne applications, utilizing stranded high strength silver plated copper 26 AWG conductors Each individual signal pair is shielded and features a dedicated drain wire for minimizing EMI and crosstalk in aircraft systems. The cable’s robust construction includes a laser-markable jacket, allowing for identification and traceability.
The conductors are designed for high-flexibility and durability according to ASTM B624 specifications. This cable is ideal for displays in the flight deck, in-flight entertainment, and other aerospace applications where reliable, high-resolution video transmission is essential.

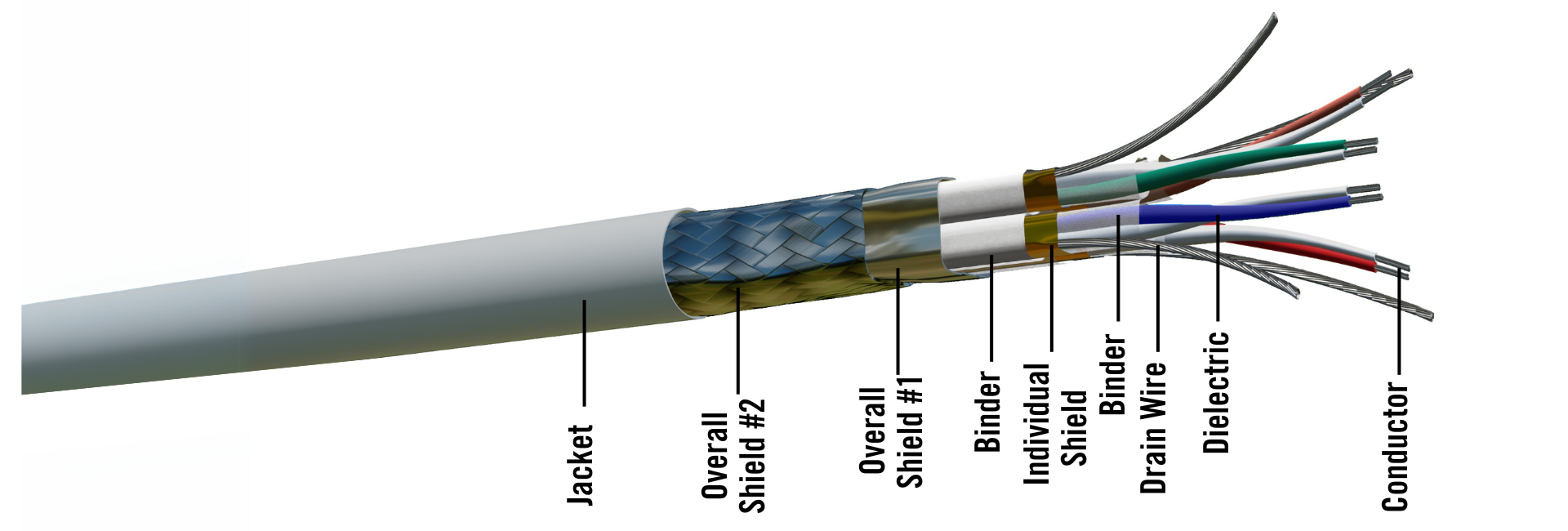

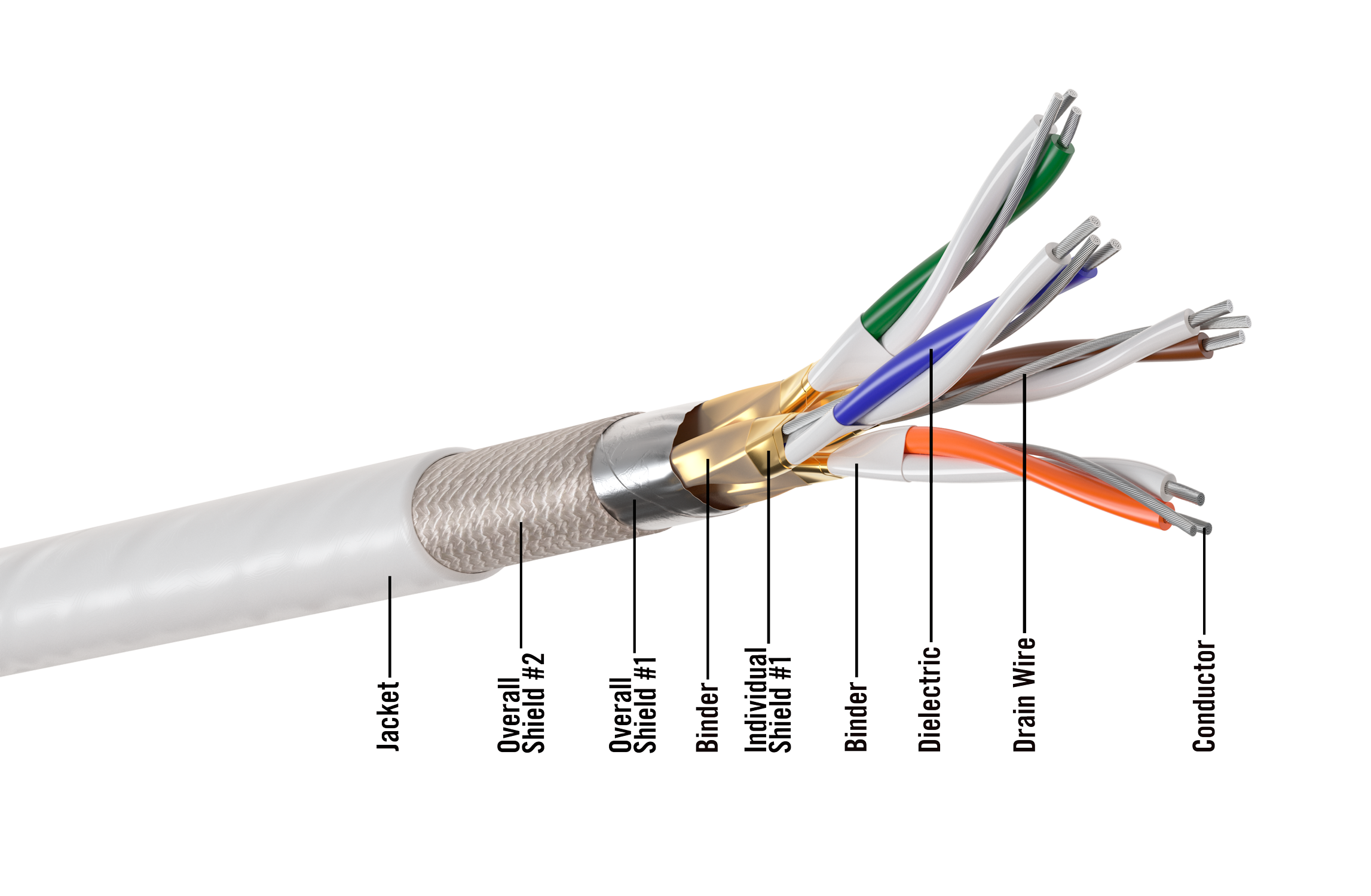

Cable Construction
DATA PAIRS:
Conductor: Silver-Plated Copper Alloy
Dielectric: PTFE
Binder: PTFE Tape (each pair)
Drain Wire: Silver-Plated HS Copper Alloy (each pair)
Individual Shield #1: Aluminum/Polyester (each pair)
Binder: PTFE Tape
Foil Shield: Aluminum/Polyester
Outer Braid: Round Silver Plated Copper
Jacket: ETFE, White (Laser Markable)
Color Codes
- Pair #1: White/Blue
- Pair #2: White/Orange
- Pair #3: White/Green
- Pair #4: White/Brown
Physical Data
- Conductor:26 AWG Stranded SPHSCA
- Temperature Range: -55/200°C
- Outer Diameter: in (mm)0.27 (6.73)
- Minimum Bend Radius: in (mm)1.30 (33.02)
- Weight: lbs/100 ft (kg/100 m)4.70 (7.00)
Electrical Data
- Impedance: ohms100
- Velocity of Propagation: 70.00%
- Max Distance:* ft (m)16 (6)
Attenuation
Frequency MAX dB/ft (dB/m max)
@825 MHz 0.305 (1.0)
