E10222 - CAT 5e Ethernet Cable (1 Data Pair)

The E10222 is a 1 pair, 10/100 Base-T CAT5e cable (exceeding ANSI/TIA-568-C.2 CAT 5e Channel Requirements) with a smaller overall diameter and weight while retaining performance and required operating parameters. The stranded tin-plated copper conductors protect against vibration, oxidation, and corrosion. Its 100% foil and 90% braided shielding provide mechanical strength and EMI protection and maintain weight and flexibility. A durable ETFE laser-markable jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation. E10222 is suitable for airborne 10/100 Base-T CAT5e Local Area Network applications such as cabin management systems (CMS), in-flight entertainment (IFE), and Ethernet backbones.

E10222 Product Bulletin

E10222 Burn Test Data

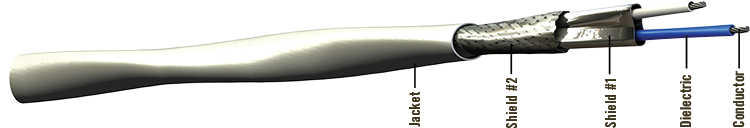

Cable Construction

  • Conductor: Tin-Plated Copper
  • Dielectric: FEP
  • Shield #1: Aluminum/Polyimide Foil
  • Shield #2: Tin-Plated Copper Braid
  • Jacket: ETFE, White (Laser-Markable)

Color Codes

  • Pair #1: White/Blue

Physical Data

  • Conductor:22 AWG Stranded TPC
  • Shield Coverage:100% (Foil)% Foil / 90% (Braid)% Braid
  • Temperature Range: -55/150°C
  • Outer Diameter: in (mm)0.19 (4.80)
  • Minimum Bend Radius: in (mm)0.95 (24.13)
  • Weight: lbs/100 ft (kg/100 m)2.30 (3.40)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)13.00 (42.70)
  • Velocity of Propagation: 80.00%
  • Dielectric Voltage Rating: (kV, RMS)0.90
  • DC Resistance: ohms/1000 ft (m)15.80 (51.80)
  • Max Distance:* ft (m)328 (100)


Frequency Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 1.5/1.8 (4.9/5.9)
@100 MHz 5.4/6.5 (17.7/21.3)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data
