E10224 - CAT 5e Ethernet Cable (1 Data Pair)

The E10224 is a 1 pair, 10/100 Base-T CAT5e cable (exceeding ANSI/TIA-568-C.2 CAT 5e Channel Requirements) with a smaller overall diameter and weight while retaining performance and required operating parameters. The twisted-pair construction of silver-plated copper alloy conductors assures uniform conductivity with excellent solderability. The 100% foil and 90% braided shielding provide mechanical strength and EMI protection and maintain weight and flexibility. A durable FEP jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation. E10224 is suitable for airborne 10/100 Base-T CAT5e Local Area Network applications such as cabin management systems (CMS), in-flight entertainment (IFE), and Ethernet backbones.

E10224 Product Bulletin

E10224 Burn Test Data

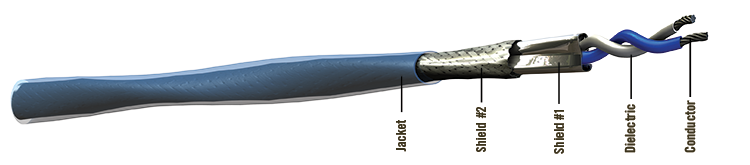

Cable Construction

  • Conductor: Silver-Plated Copper
  • Dielectric: FEP
  • Shield #1: Aluminum/Polyimide Foil
  • Shield #2: Silver-Plated Copper Braid
  • Jacket: FEP, Translucent Blue
../CableConstructionImageAltText

Color Codes

  • Pair #1: White/Blue

Physical Data

  • Conductor:24 AWG Stranded SPC
  • Shield Coverage:100% Foil / 90% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.16 (4.14)
  • Minimum Bend Radius: in (mm)0.90 (22.86)
  • Weight: lbs/100 ft (kg/100 m)2.18 (3.20)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)13.00 (42.70)
  • Velocity of Propagation: 80.00%
  • Dielectric Voltage Rating: (kV, RMS)0.90
  • DC Resistance: ohms/1000 ft (m)28.50 (93.50)
  • Max Distance:* ft (m)328 (100)

Attenuation

Frequency Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 1.8/2.1 (5.9/6.9)
@100 MHz 5.8/7.0 (19.0/23.0)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data
