E10422
E10422 - CAT 5e Ethernet Cable (2 Data Pair)

The E10422 is a 2 pair, 10/100 Base-T CAT5e cable (exceeding ANSI/TIA-568-C.2 CAT 5e Channel Requirements) with a smaller overall diameter and weight while retaining performance and required operating parameters up to 328 ft. The twisted-pair construction of silver-plated copper alloy conductors assures uniform conductivity with excellent solderability. A durable ETFE laser-markable jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation. E10422 is suitable for airborne 10/100 Base-T CAT5e Local Area Network applications such as cabin management systems (CMS), in-flight entertainment (IFE), and Ethernet backbones.

E10422 Product Bulletin

E10422 Burn Test Data

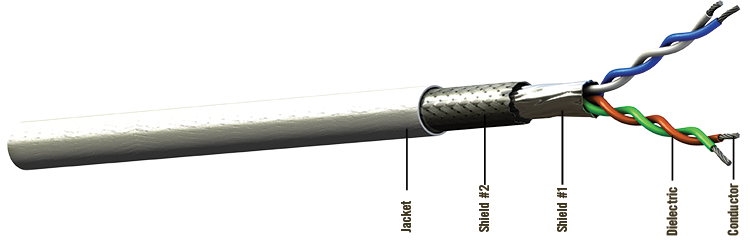

Cable Construction

  • Conductor: Silver-Plated Copper
  • Dielectric: FEP
  • Shield #1: Aluminum/Polyimide Foil
  • Shield #2: Silver-Plated Copper Braid
  • Jacket: ETFE, White (Laser-Markable)
../CableConstructionImageAltText

Color Codes

  • Pair #1: White/Blue
  • Pair #2: Orange/Green

Physical Data

  • Conductor:22 AWG Stranded SPC
  • Shield Coverage:100% Foil / 90% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.30 (7.49)
  • Minimum Bend Radius: in (mm)2.80 (71.12)
  • Weight: lbs/100 ft (kg/100 m)3.70 (5.50)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)13.00 (42.70)
  • Velocity of Propagation: 80.00%
  • Dielectric Voltage Rating: (kV, RMS)0.90
  • DC Resistance: ohms/1000 ft (m)15.20 (49.90)
  • Max Distance:* ft (m)328 (100)

Attenuation

Frequency Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 1.4/1.7 (4.6/5.6)
@100 MHz 4.5/5.4 (14.8/17.7)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data
