E12224 - CAT 5e Ethernet Cable (1 Data Pair)

The E12224 is a 1 pair, 10/100 Base-T CAT5e cable (exceeding ANSI/TIA-568-C.2 CAT 5e Channel Requirements) with a smaller overall diameter and weight while retaining performance and required operating parameters up to 255 ft. The stranded tin-plated copper conductors protect against vibration, oxidation, and corrosion. The 100% foil and 85% braided shielding provide mechanical strength and EMI protection and maintain weight and flexibility. A durable ETFE laser-markable jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation. E12224 is suitable for airborne 10/100 Base-T CAT5e Local Area Network applications such as cabin management systems (CMS), in-flight entertainment (IFE), and Ethernet backbones.

E12224 Product Bulletin

E12224 Burn Test Data

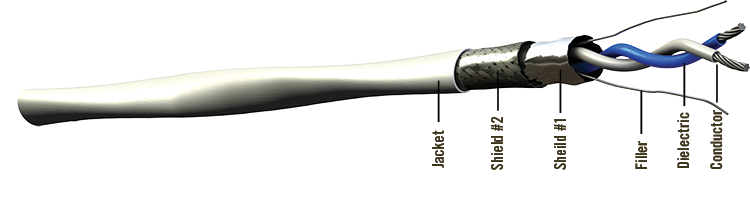

Cable Construction

  • Conductor: Tin-Plated Copper
  • Dielectric: FEP
  • Fillers: Fluoropolymer
  • Shield #1: Aluminum/Polyimide Foil
  • Shield #2: Tin-Plated Copper Braid
  • Jacket: ETFE, White (Laser-Markable)
../CableConstructionImageAltText

Color Codes

  • Pair #1: White/Blue

Physical Data

  • Conductor:24 AWG Stranded TPC
  • Shield Coverage:100% Foil / 85% Braid
  • Temperature Range: -55/150°C
  • Outer Diameter: in (mm)0.15 (3.71)
  • Minimum Bend Radius: in (mm)0.75 (19.05)
  • Weight: lbs/100 ft (kg/100 m)1.58 (2.40)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)13.00 (42.70)
  • Velocity of Propagation: 80.00%
  • Dielectric Voltage Rating: (kV, RMS)0.90
  • DC Resistance: ohms/1000 ft (m)28.40 (93.20)
  • Max Distance:* ft (m)255 (78)

Attenuation

Frequency Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 2.3/2.7 (7.5/8.9)
@100 MHz 8.0/9.2 (26.2/30.2)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data
