E13426 - CAT 5e Ethernet Cable (2 Data Pair)

The E13426 is a 2 pair, 10/100 Base-T CAT5e cable (exceeding ANSI/TIA-568-C.2 CAT 5e Channel Requirements) with a smaller overall diameter and weight while retaining performance and required operating parameters up to 224 ft. The E13426’s twisted-pair construction (two separate pairs) of silver-plated copper conductors is surrounded by a PFA dielectric that assures uniform conductivity with excellent solderability. The 80% braided shielding assure uniform conductivity with excellent solderability, further protecting against EMI. A laser-markable PTFE jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation. E13426 is suitable for airborne 10/100 Base-T CAT5e Local Area Network applications such as cabin management systems (CMS), in-flight entertainment (IFE), and Ethernet backbones.

E13426 Product Bulletin

E13426 Burn Test Data

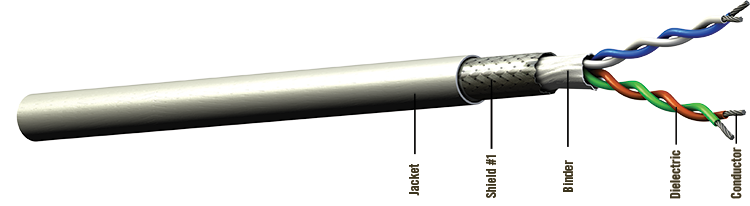

Cable Construction

  • Conductor: Silver-Plated High Strength Copper Alloy
  • Dielectric: PFA
  • Binder: PTFE
  • Shield #1: Silver-Plated Copper Braid
  • Jacket: PTFE (Laser Markable)
../CableConstructionImageAltText

Color Codes

  • Pair #1: White/Blue
  • Pair #2: Orange/Green

Physical Data

  • Conductor:26 AWG Stranded SPHSCA
  • Shield Coverage:80% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.16 (3.99)
  • Minimum Bend Radius: in (mm)0.50 (12.70)
  • Weight: lbs/100 ft (kg/100 m)2.00 (2.90)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)14.50 (47.60)
  • Velocity of Propagation: 70.00%
  • Dielectric Voltage Rating: (kV, RMS)1.50
  • DC Resistance: ohms/1000 ft (m)44.80 (147.00)
  • Max Distance:* ft (m)224 (68)

Attenuation

Frequency Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 2.7/3.1 (9.8/10.2)
@100 MHz 8.7/10.5 (28.5/34.4)
