E20224 - CAT 5e Ethernet Cable (1 Data Pair)

The E20224 is a 1 pair, 10/100 Base-T CAT5e cable (exceeding ANSI/TIA-568-C.2 CAT 5e Channel Requirements) with a smaller overall diameter and weight while retaining performance and required operating parameters up to 273 ft. The twisted-pair construction of silver-plated copper alloy conductors assures uniform conductivity with excellent solderability. The 80% braided shielding provide mechanical strength and EMI protection and maintain weight and flexibility. A durable ETFE laser-markable jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation. E20224 is suitable for airborne 10/100 Base-T CAT5e Local Area Network applications such as cabin management systems (CMS), in-flight entertainment (IFE), and Ethernet backbones.

E20224 Product Bulletin

E20224 Burn Test Data

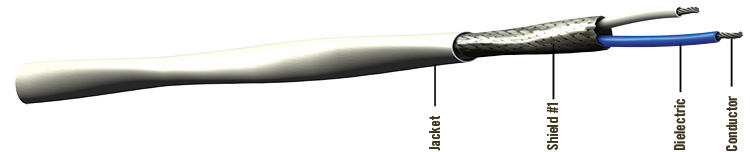

Cable Construction

  • Conductor: Silver-Plated High Strength Copper Alloy
  • Dielectric: FEP
  • Shield #1: Silver-Plated Copper Braid
  • Jacket: ETFE, White (Laser-Markable)
../CableConstructionImageAltText

Color Codes

  • Pair #1: White/Blue

Physical Data

  • Conductor:24 AWG Stranded SPHSCA
  • Shield Coverage:80% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.14 (3.58)
  • Minimum Bend Radius: in (mm)0.75 (19.05)
  • Weight: lbs/100 ft (kg/100 m)1.07 (1.60)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)13.00 (42.70)
  • Velocity of Propagation: 80.00%
  • Dielectric Voltage Rating: (kV, RMS)0.90
  • DC Resistance: ohms/1000 ft (m)28.50 (93.50)
  • Max Distance:* ft (m)273 (83)

Attenuation

Frequency Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 2.1/2.6 (6.9/8.5)
@100 MHz 7.7/8.7 (25.3/28.5)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data
