E50824 - CAT 5e Ethernet Cable (4 Data Pair)

The E50824 is a shielded 4-Pair, 1000 Base-T Cat 5E ethernet cable (exceeding ANSI/TIA-568-C.2 CAT 5E Channel Requirements) that incorporates innovative design features to provide maximum electrical performance in a small, lightweight, and flexible package. The E50824’s twisted-pair construction (four separate pairs) of silver-plated copper conductors is surrounded by fluoropolymer dielectric that assures uniform conductivity with excellent solderability. The 100% foil and 90% braided shielding serve to further protect against EMI. A fluoropolymer jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation.

Note: This product is also available with a black fluoropolymer jacket under product number G50824

E50824 Product Bulletin

E50824 Burn Test Data

Cable Construction

  • Conductor: Silver-Plated Copper
  • Dielectric: FEP
  • Spline:  Fluoropolymer
  • Binder: PTFE Tape
  • Shield #1: Aluminum/Polyester Foil
  • Shield #2: Silver-Plated Copper Round Braid
  • Jacket: FEP, Translucent Blue

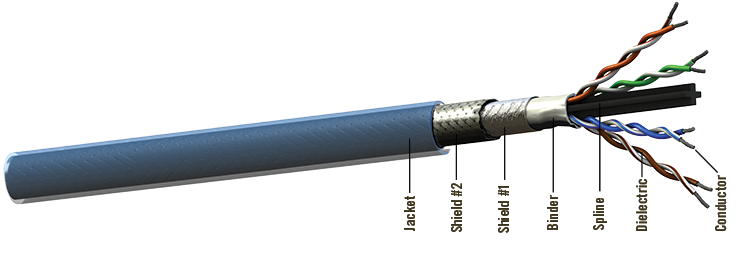

../CableConstructionImageAltText

Color Codes

  • Pair #1: Blue,White Stripe/Blue
  • Pair #2: Orange,White Stripe/Orange
  • Pair #3: Green,White Stripe/Green
  • Pair #4: Brown,White Stripe/Brown

Physical Data

  • Conductor:24 AWG Stranded SPC
  • Shield Coverage:100% Foil / 90% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.27 (6.73)
  • Minimum Bend Radius: in (mm)1.40 (35.56)
  • Weight: lbs/100 ft (kg/100 m)5.00 (7.40)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)14.50 (47.60)
  • Velocity of Propagation: 70.00%
  • Dielectric Voltage Rating: (kV, RMS)1.50
  • DC Resistance: ohms/1000 ft (m)28.50 (93.50)
  • Max Distance:* ft (m)268 (82)

Attenuation

Frequency Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 2.2/2.6 (7.2/8.5)
@100 MHz 6.8/8.2 (22.3/26.9)
