E51424
CAT 5e Ethernet Cable (Quadraxial)

The E51424 is a 100 Base-T Quadrax cable specially designed for airborne applications as defined by ARINC Specification 664. The overall design of E51424 allows a smaller overall diameter and weight while exceeding Category 5e requirements. The E51424’s construction of silver-plated copper conductors is surrounded by fluoropolymer dielectric that assures uniform conductivity with excellent solderability. E51424 is designed to be terminated with ARINC 600 and D38999 quad-type contacts and is compatible with any contact designed for Tensolite cable part number NF24Q100-01. The 90% inner braid and 85% outer braided shielding provides double shielding to preserve technical performance. An ETFE laser-markable jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of termination.

E51424 Product Bulletin

E51424 Burn Test Data

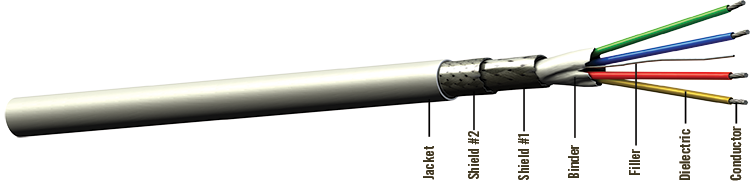

Cable Construction

  • Conductor: Silver-Plated High Strength Copper Alloy
  • Dielectric: FEP
  • Binder: PTFE Tape
  • Filler: Fluoropolymer
  • Shield #1: Tin-Plated Copper Inner Flat Strip Braid
  • Shield #2: Tin-Plated Copper Round Braid
  • Jacket: ETFE, White (Laser Markable)

../CableConstructionImageAltText

Color Codes

  • Pair #1: Red/Blue
  • Pair #2: Yellow/Green

Physical Data

  • Conductor:24 AWG Stranded SPHSCA
  • Shield Coverage:90% Inner (Braid), 85% Outer (Braid)% Braid
  • Temperature Range: -55/150°C
  • Outer Diameter: in (mm)0.16 (4.09)
  • Minimum Bend Radius: in (mm)0.80 (20.32)
  • Weight: lbs/100 ft (kg/100 m)2.20 (3.30)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)13.00 (42.70)
  • Velocity of Propagation: 80.00%
  • Dielectric Voltage Rating: (kV, RMS)0.90
  • DC Resistance: ohms/1000 ft (m)28.50 (93.50)
  • Max Distance:* ft (m)255 (78)

Attenuation

Frequency

Nom/Max dB/100 ft

Nom/Max (dB/100 m)
@10 MHz 2.3/2.7 (7.5/8.9)
@100 MHz 8.0/9.2 (26.2/30.2)

Spec Sheet Builder

E51424 Connectors

Select one or more connector files to download directly or add to your compiled pdf document.

Connector TypeDescriptionPart NumberTermination InstructionsAdd to Spec Sheet
RJ45 For 2 Pair CablesPlug w/ATUM Strain Relief (Cat 5e)110506(E51424)T-110506
Plug w/ATUM Strain Relief (Cat 5e)110558T-110558
Plug w/Protective Boot (Cat 5e)110726(E51424)T-110726-QX
Plug w/ATUM Strain Relief (Cat 6) fits Amphenol (RJF) Ruggedized Backshell110789(E51424)T-110789-QX
Jack w/ATUM Strain Relief (Cat 6a)110939(E50424, E51424, E51426)T-110939-QX
