E51424 - CAT 5e Ethernet Cable (Quadraxial)

The E51426 is a 100 Base-T Quadrax cable specially designed for airborne applications as defined by ARINC Specification 664. The overall design of E51426 allows a smaller overall diameter and weight while exceeding Category 5e requirements. The E51426’s construction of high-strength copper alloy conductors is surrounded by fluoropolymer insulation assuring uniform conductivity with excellent solderability. E51426 is designed to be terminated with ARINC 600 and D38999 quadrax contacts and is compatible with any contact designed for Tensolite cable part number NF26Q100. The 90% inner braid and 85% outer braided shielding provide double shielding to preserve technical performance. An ETFE laser markable jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation.

E51426 Product Bulletin

E51426 Burn Test Data

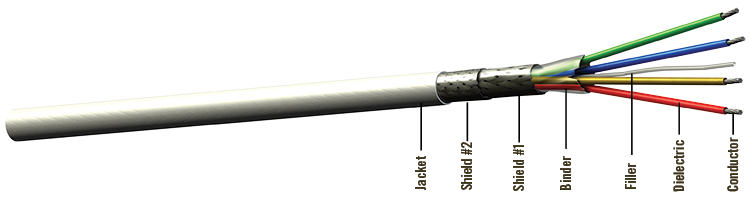

Cable Construction

  • Conductor: Silver-Plated High Strength Copper Alloy
  • Dielectric: FEP
  • Binder: PTFE Tape
  • Filler: Fluoropolymer
  • Shield #1: Tin-Plated Copper Inner Flat Strip Braid
  • Shield #2: Tin-Plated Copper Round Braid
  • Jacket: ETFE, White (Laser-Markable)


Color Codes

  • Pair #1: Red/Blue
  • Pair #2: Yellow/Green

Physical Data

  • Conductor:26 AWG Stranded SPHSCA
  • Shield Coverage:90% Inner (Braid), 85% Outer (Braid)% Braid
  • Temperature Range: -55/150°C
  • Outer Diameter: in (mm)0.14 (3.48)
  • Minimum Bend Radius: in (mm)0.70 (17.78)
  • Weight: lbs/100 ft (kg/100 m)1.80 (2.70)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)14.50 (47.60)
  • Velocity of Propagation: 70.00%
  • Dielectric Voltage Rating: (kV, RMS)1.50
  • DC Resistance: ohms/1000 ft (m)44.80 (147.00)
  • Max Distance:* ft (m)214 (65)


Frequency  Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 2.8/3.2 (9.2/10.5)
@100 MHz 9.6/11.0 (31.5/36.1)

Spec Sheet Builder

E51426 Connectors

Select one or more connector files to download directly or add to your compiled pdf document.

Connector TypeDescriptionPart NumberTermination InstructionsAdd to Spec Sheet
RJ45 For 2 Pair CablesJack w/ATUM Strain Relief (Cat 6a)110939(E50424, E51424, E51426)T-110939-QX
RJ45 For 4 Pair CablesShielded CAT 6a, Plug w/Protective Boot110725(E51426)T-110725-QX
Shielded CAT 6a, Plug w/ATUM Strain Relief110731(E51426)T-110731-QX
Plug w/ATUM Strain Relief (Cat 6a) fits Amphenol (RJF) Ruggedized Backshell110790(E51426)T-110790-QX
