E5E2222-D- CAT 5e Ethernet Cable (1 Data Pair)

The E5E2222-D is a 1 pair, 10/100 Base-T CAT5e cable specially designed for airborne applications such as cabin management, in-flight entertainment, and internet backbones. The E5E2222-D’s twisted-pair construction of silver-plated copper conductors assures uniform conductivity with excellent solderability. The 90% braided shielding assures uniform conductivity with excellent solderability, further protecting against EMI. An ETFE laser markable jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation.

E5E2222-D Product Bulletin

E5E2222-D Burn Test Data

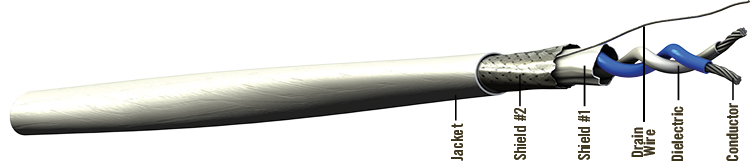

Cable Construction

  • Conductor: Stranded Silver-Plated Copper
  • Dielectric: FEP
  • Shield #1: Aluminum/Polyimide Foil
  • Drain Wire: 24 AWG Silver-Plated Copper
  • Shield #2: Silver-Plated Copper Braid
  • Jacket: ETFE, White (Laser-Markable)

Color Codes

  • Pair #1: White/Blue

Physical Data

  • Conductor:22 AWG Stranded SPC
  • Shield Coverage:100% Foil / 90% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.18 (4.64)
  • Minimum Bend Radius: in (mm)0.90 (22.86)
  • Weight: lbs/100 ft (kg/100 m)2.38 (3.51)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)13.00 (42.65)
  • Velocity of Propagation: 80.00%
  • Dielectric Voltage Rating: (kV, RMS)0.90
  • DC Resistance: ohms/1000 ft (m)17.50 (57.40)
  • Max Distance:* ft (m)328 (100)


Frequency Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 1.5/1.8 (4.9/5.9)
@100 MHz 5.4/7.3 (17.7/24.0)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data
