E61224 - CAT 5e Ethernet Cable (1 Data Pair)
The E61224 is a 1 pair, 10/100 Base-T CAT5e cable (exceeding ANSI/TIA-568-C.2 CAT 5e Channel Requirements) with a smaller overall diameter and weight while retaining performance and required operating parameters up to 328 ft. The twisted-pair construction of silver-plated copper alloy conductors assures uniform conductivity with excellent solderability. The 100% foil and 90% braided shielding provide mechanical strength and EMI protection and maintain weight and flexibility. A durable ETFE laser-markable jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation. E61224 is suitable for airborne 10/100 Base-T CAT5e Local Area Network applications such as cabin management systems (CMS), in-flight entertainment (IFE), and Ethernet backbones.

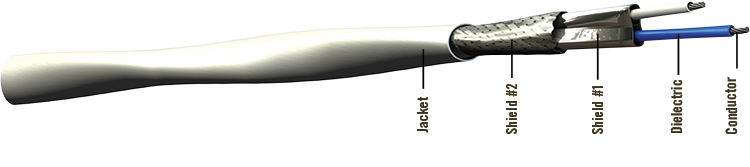

Cable Construction
- Conductor: Silver-Plated High Strength Copper Alloy
- Dielectric: FEP
- Shield #1: Aluminum/Polyimide Foil
- Shield #2: Silver-Plated Copper Braid
- Jacket: ETFE, White (Laser-Markable)
Color Codes
- Pair #1: White/Blue
Physical Data
- Conductor:24 AWG Stranded SPHSCA
- Shield Coverage:100% Foil / 90% Braid
- Temperature Range: -55/200°C
- Outer Diameter: in (mm)0.16 (4.04)
- Minimum Bend Radius: in (mm)1.25 (31.75)
- Weight: lbs/100 ft (kg/100 m)1.98 (3.00)
Electrical Data
- Impedance: ohms100
- Capacitance: pF/ft (m)13.00 (42.70)
- Velocity of Propagation: 80.00%
- Dielectric Voltage Rating: (kV, RMS)0.90
- DC Resistance: ohms/1000 ft (m)28.40 (93.20)
- Max Distance:* ft (m)328 (100)
Attenuation
| Frequency | Nom/Max dB/100 ft | Nom/Max (dB/100 m) |
|---|---|---|
| @10 MHz | 1.8/2.1 | (5.9/6.9) |
| @100 MHz | 5.8/7.0 | (19.0/23.0) |
