E61424 - CAT 5e Ethernet Cable (2 Data Pair)

The E61424 is a 2 pair, 10/100 Base-T CAT5e cable (exceeding ANSI/TIA-568-C.2 CAT 5e Channel Requirements) with a smaller overall diameter and weight while retaining performance and required operating parameters up to 269 ft. The twisted-pair construction of silver-plated high-strength copper alloy conductors assures uniform conductivity with excellent solderability. The 100% foil and 90% braided shielding provide mechanical strength and EMI protection and maintain weight and flexibility. A durable ETFE laser-markable jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation. E61424 is suitable for airborne 10/100 Base-T CAT5e Local Area Network applications such as cabin management systems (CMS), in-flight entertainment (IFE), and Ethernet backbones.

E61424 Product Bulletin

E61424 Burn Test Data

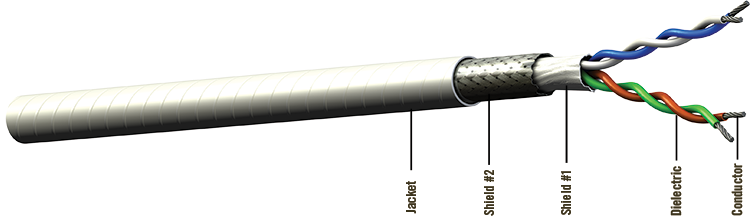

Cable Construction

  • Conductor: Silver-Plated High Strength Copper Alloy
  • Dielectric: FEP
  • Shield #1: Aluminum/Polyimide Foil
  • Shield #2: Silver-Plated Copper Braid
  • Jacket: ETFE, White (Laser Markable)
../CableConstructionImageAltText

Color Codes

  • Pair #1: White/Blue
  • Pair #2: Orange/Green

Physical Data

  • Conductor:24 AWG Stranded SPHSCA
  • Shield Coverage:100% Foil / 90% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.22 (5.66)
  • Minimum Bend Radius: in (mm)1.75 (44.45)
  • Weight: lbs/100 ft (kg/100 m)2.98 (4.40)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)13.50 (44.30)
  • Velocity of Propagation: 80.00%
  • Dielectric Voltage Rating: (kV, RMS)0.90
  • DC Resistance: ohms/1000 ft (m)28.40 (93.50)
  • Max Distance:* ft (m)269 (82)

Attenuation

Frequency Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 2.2/2.6 (7.2/8.5)
@100 MHz 6.0/7.2 (19.7/23.6)
