E6A0824 - CAT 6a Ethernet Cable (4 Data Pair)

The E6A0824 is a 4-Pair, 10G Base-T Cat 6a ethernet cable (exceeding ANSI/TIA-568-C.2 CAT 6a Channel Requirements) that incorporates innovative design features to provide maximum electrical performance in a small, lightweight, and flexible package. The E6A0824’s stranded silver-plated copper conductors are designed for high vibration environments, then twisted-pair at different lay lengths to effectively reduce inductive interference. The 100% foil and 90% braided shielding serve to further protect against EMI. A fluoropolymer jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation.

E6A0824 Product Bulletin

E6A0824 Burn Test Data

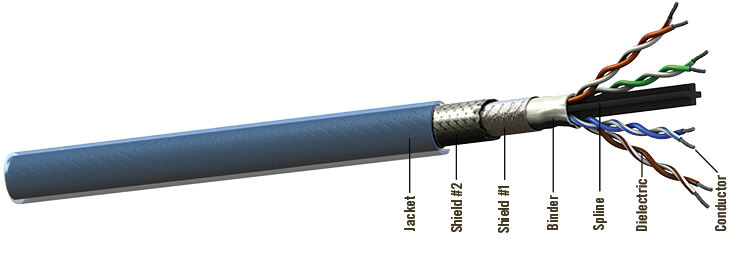

Cable Construction

  • Conductor: Silver-Plated Copper
  • Dielectric: FEP
  • Spline:  Fluoropolymer
  • Binder: PTFE Tape
  • Shield #1: Aluminum/Polyester/Aluminum Foil
  • Shield #2: Silver-Plated Copper Braid
  • Jacket: FEP, Translucent Blue
../CableConstructionImageAltText

Color Codes

  • Pair #1: Blue,White/Blue Stripe
  • Pair #2: Orange,White/Orange Stripe
  • Pair #3: Green,White/Green Stripe
  • Pair #4: Brown,White/Brown Stripe

Physical Data

  • Conductor:24 AWG Stranded SPC
  • Shield Coverage:100% Foil / 90% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.28 (6.99)
  • Minimum Bend Radius: in (mm)1.40 (35.56)
  • Weight: lbs/100 ft (kg/100 m)5.28 (7.90)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)14.50 (47.60)
  • Velocity of Propagation: 70.00%
  • Dielectric Voltage Rating: (kV, RMS)1.50
  • DC Resistance: ohms/1000 ft (m)28.50 (93.50)
  • Max Distance:* ft (m)246 (75)

Attenuation

Frequency  Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 2.2/2.6 (7.2/8.5)
@100 MHz 6.8/8.2 (22.3/26.9)
@250 MHz 10.9/13.1 (35.8/43.0)
@500 MHz 15.6/18.7 (51.2/61.4)

Spec Sheet Builder

E6A0824 Connectors

Select one or more connector files to download directly or add to your compiled pdf document.

Connector TypeDescriptionPart NumberTermination InstructionsAdd to Spec Sheet
RJ45 For 2 Pair CablesPlug w/ATUM Strain Relief (Cat 5e)110506T-110506-02
Plug w/ATUM Strain Relief (Cat 6) fits Amphenol (RJF) Ruggedized Backshell110789T-110789
RJ45 For 4 Pair Cables90 Deg Plug w/ATUM Strain Relief (Cat 6a)110900 (568B)T-110900
90 Deg Plug w/ATUM Strain Relief (Cat 6a)110912 (568A)T-110912
Jack w/ATUM Strain Relief (Cat 6a)110937T-110937
Jack w/ATUM Strain Relief (Cat 6a)110938T-110938
Plug w/Clamp Nut Strain Relief (Cat 6a)110973T-110973
Plug w/Clamp Nut Strain Relief (Cat 6a)110975T-110975
Shielded CAT 6a, Plug w/ATUM Strain Relief111170T-111170
Shielded CAT 6a, Plug w/Strain Relief Sleeve111171T-111171
Shielded CAT 6a, Plug w/Protective Boot111172T-111172
Plug w/ATUM Strain Relief (Cat 6a) fits Amphenol (RJF) Ruggedized Backshell111173T-111173

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data
