E6A5824 - CAT 6a Ethernet Cable (4 Data Pair)

The E6A5824 is a 4-Pair, 10G Base-T Cat 6a ethernet cable that incorporates innovative design features to provide maximum electrical performance in a small, lightweight, and flexible package. E6A5824 cable cannot only be used for Cat 6a, 10 Gbit Ethernet applications, but also can be used for video applications because of the low skew between each pair. The E6A5824’s twisted-pair construction (four separate pairs) of silver-plated copper conductors are individually shielded. The 100% foil and 90% braided shielding serve to further protect against EMI. A laser-markable PTFE jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation.

E6A5824 Product Bulletin

E6A5824 Burn Test Data

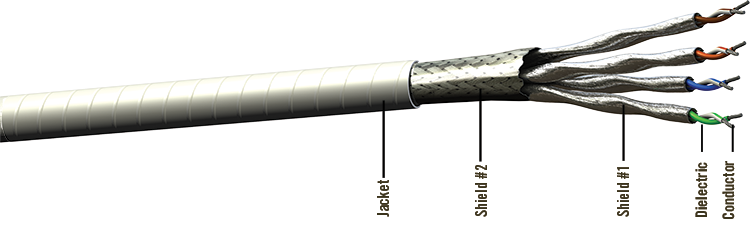

Cable Construction

  • Conductor: Silver-Plated High Strength Copper Alloy
  • Dielectric: PFA
  • Shield #1: Aluminum/Polyimide Foil (each pair)
  • Shield #2: Silver-Plated Copper Braid
  • Jacket: PTFE Tape, White (Laser Markable)
../CableConstructionImageAltText

Color Codes

  • Pair #1: Blue, White/Blue Stripe
  • Pair #2: Orange, White/Orange Stripe
  • Pair #3: Green, White/Green Stripe
  • Pair #4: Brown, White/Brown Stripe

Physical Data

  • Conductor:24 AWG Stranded SPHSCA
  • Shield Coverage:100% Foil / 90% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.26 (6.60)
  • Minimum Bend Radius: in (mm)1.30 (33.02)
  • Weight: lbs/100 ft (kg/100 m)4.20 (6.30)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)13.00 (42.70)
  • Velocity of Propagation: 80.00%
  • Dielectric Voltage Rating: (kV, RMS)0.90
  • DC Resistance: ohms/1000 ft (m)28.40 (93.20)
  • Max Distance:* ft (m)296 (90)

Attenuation

Frequency  Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 1.9/2.1 (6.2/6.9)
@100 MHz 6.6/7.0 (21.7/23.0)
@250 MHz 10.8/11.4 (35.4/37.4)
@500 MHz 15.7/16.6 (51.5/54.5)

Spec Sheet Builder

E6A5824 Connectors

Select one or more connector files to download directly or add to your compiled pdf document.

Connector TypeDescriptionPart NumberTermination InstructionsAdd to Spec Sheet
RJ45 For 4 Pair Cables90 Deg Plug w/ATUM Strain Relief (Cat 6a)110900 (568B)T-110900
90 Deg Plug w/ATUM Strain Relief (Cat 6a)110912 (568A)T-110912
Jack w/ATUM Strain Relief (Cat 6a)110937T-110937
Jack w/ATUM Strain Relief (Cat 6a)110938T-110938
Plug w/Clamp Nut Strain Relief (Cat 6a)110973T-110973
Plug w/Clamp Nut Strain Relief (Cat 6a)110975T-110975
Shielded CAT 6a, Plug w/ATUM Strain Relief111179T-111179
Shielded CAT 6a, Plug w/Strain Relief Sleeve111180T-111180
Shielded CAT 6a, Plug w/Protective Boot111181T-111181
