E6A6824
E6A6824 - CAT 6a Ethernet Cable (4 Data Pair)

The E6A6824 Cat 6a ethernet cable incorporates innovative design features to provide maximum electrical performance in a small, lightweight, and flexible package. The E6A6824 preserves technical performance by incorporating differential lay lengths between pairs and utilizing a foil and braided shield and delivers 10 Gigabit (ANSI/TIA-568 Category 6a) performance up to 246 ft. A PTFE ultra-flexible, laser-markable jacket is utilized to make it easier to install the cable. E6A6824 is an excellent selection for Engineers and Technicians installing cabin management systems (CMS), in-flight entertainment (IFE), and Ethernet backbones.

E6A6824 Product Bulletin

E6A6824 Burn Test Data

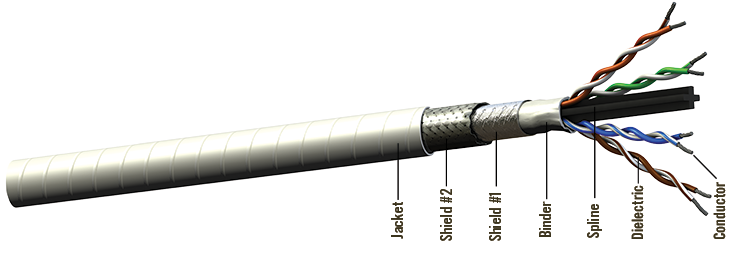

Cable Construction

  • Conductor: Silver-Plated High Strength Copper Alloy
  • Dielectric: PFA
  • Spline: Fluoropolymer
  • Binder: PTFE Tape
  • Shield #1: Aluminum/Polyimide Foil
  • Shield #2: Silver-Plated Copper Braid
  • Jacket: PTFE, White (Laser Markable)
../CableConstructionImageAltText

Color Codes

  • Pair #1: Blue, White/Blue Stripe
  • Pair #2: Orange, White/Orange Stripe
  • Pair #3: Green, White/Green Stripe
  • Pair #4: Brown, White/Brown Stripe

Physical Data

  • Conductor:24 AWG Stranded SPHSCA
  • Shield Coverage:100% Foil / 80% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.26 (6.60)
  • Minimum Bend Radius: in (mm)0.78 (19.81)
  • Weight: lbs/100 ft (kg/100 m)4.40 (6.50)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)14.50 (47.60)
  • Velocity of Propagation: 70.00%
  • Dielectric Voltage Rating: (kV, RMS)1.50
  • DC Resistance: ohms/1000 ft (m)28.40 (93.20)
  • Max Distance:* ft (m)246 (75)

Attenuation

Frequency  Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 2.3/2.6 (7.5/8.5)
@100 MHz 7.0/8.4 (23.0/27.6)
@250 MHz 11.4/13.7 (37.4/44.9)
@500 MHz 16.5/20.0 (58.1/65.6)

Spec Sheet Builder

E6A6824 Connectors

Select one or more connector files to download directly or add to your compiled pdf document.

Connector TypeDescriptionPart NumberTermination InstructionsAdd to Spec Sheet
RJ45 For 2 Pair CablesPlug w/ATUM Strain Relief (Cat 5e)110506T-110506-02
Plug w/ATUM Strain Relief (Cat 6) fits Amphenol (RJF) Ruggedized Backshell110789T-110789
RJ45 For 4 Pair Cables90 Deg Plug w/ATUM Strain Relief (Cat 6a)110900 (568B)T-110900
90 Deg Plug w/ATUM Strain Relief (Cat 6a)110912 (568A)T-110912
Jack w/ATUM Strain Relief (Cat 6a)110937T-110937
Jack w/ATUM Strain Relief (Cat 6a)110938T-110938
Plug w/Clamp Nut Strain Relief (Cat 6a)110973T-110973
Plug w/Clamp Nut Strain Relief (Cat 6a)110975T-110975
Shielded CAT 6a, Plug w/ATUM Strain Relief111170T-111170
Shielded CAT 6a, Plug w/Strain Relief Sleeve111171T-111171
Shielded CAT 6a, Plug w/Protective Boot111172T-111172
Plug w/ATUM Strain Relief (Cat 6a) fits Amphenol (RJF) Ruggedized Backshell111173T-111173
