HH85295F
HH85295F - 50 Ohm High Frequency RF Cable

HH85295F is a 50-Ohm microwave coaxial cable designed for high-frequency applications on the Ku band and X band. HH85295F provides superior signal integrity, low insertion loss, less RF interference, and a robust yet easy-to-install design. The HH85295F coaxial cable is a 100% shielded construction, incorporating a flat spiral-wrapped shield that achieves -110 dB shielding effectiveness, the same as a solid copper tube. The inner spiral shield conforms to the low-loss PTFE dielectric for superior uniformity and stability of all operation parameters, initially and over time.

HH85295F Product Bulletin

HH85295F Burn Test Data

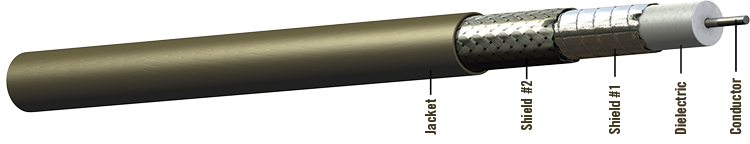

Cable Construction

  • Conductor: Silver-Plated Copper
  • Dielectric: PTFE
  • Shield #1: Silver-Plated Copper Flat Spiral
  • Shield #2: Silver-Plated Copper Braid
  • Jacket: Fluoropolymer, Olive Drab
../CableConstructionImageAltText

Physical Data

  • Conductor:11 AWG Solid SPC
  • Operating Temperature: -55/200°C
  • Outer Diameter: in (mm)0.29 (7.37)
  • Minimum Bend Radius: in (mm)1.50 (38.10)
  • Weight: lbs/100 ft (kg/100 m)7.90 (11.80)

Electrical Data

  • Impedance: ohms50
  • Capacitance: pF/ft (m)24.00 (78.80)
  • Velocity of Propagation: 83.00%
  • Time Delay: ns/ft (m)1.21 (3.97)
  • Shielding Effectiveness: dB/min-110
  • Dielectric Voltage Rating: (kV, RMS)6.50
  • DC Resistance: ohms/1000 ft (m)1.26 (4.10)

Attenuation

Nom / Max dB/100 ft (dB/100 m)
@12.0 GHz 15.4/17.0 (50.5/55.8)
@15.0 GHz 17.7/19.5 (58.1/64.0)
@18.0 GHz 19.7/21.8 (64.6/71.5)



Formula for Attenuation:
(K1 × √F(MHz) + (K2 × F(MHz))

K Values (nom loss):
K1 =0.111   K2 =0.00027

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data
