USB3-2624
USB3-2624 - USB 3.1 Cable

The USB3-2624 is a USB 3.1 cable specially designed for high speed airborne applications and delivers performance up to 10Gb. The USB3-2624 cable will perform as a USB 3.1 & USB 3.0 cable solution and is also backwards compatible for USB 2.0. It’s twisted-pair construction of silver-plated copper conductors is surrounded by FEP insulation and 100% foil and 80% braided shielding assure uniform conductivity with excellent solderability, further protecting against EMI. A PTFE laser-markable jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation.

USB3-2624 Product Bulletin

USB3-2624 Burn Test Data

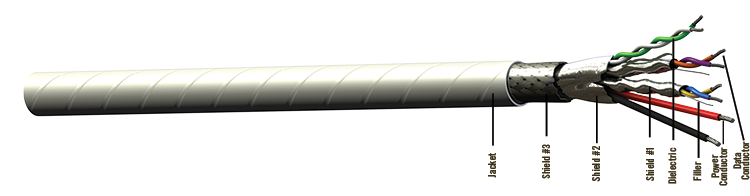

Cable Construction

  • Unshielded Conductor:  Silver-Plated High Strength Copper Alloy
  • Shielded Conductor: Silver-Plated High Strength Copper Alloy
  • Drain Wire:  Silver-Plated Copper
  • Dielectric: PFA
  • Power Conductor:  Silver-Plated High Strength Copper Alloy
  • Shield #1: Aluminum/Polyimide Foil (ea. pair)
  • Shield #2: Aluminum/Polyimide Foil
  • Shield #3:  Silver-Plated Copper Braid
  • Jacket: PTFE, White (Laser Markable)
../CableConstructionImageAltText

Color Codes

  • Twisted Data Pair: Green/White
  • Shielded Data Pair #1: Violet, Orange
  • Shielded Data Pair #2: Yellow, Blue
  • Power Pair: Black/Red

Physical Data

  • Conductor:26 AWG Stranded SPHSCA
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.21 (5.31)
  • Minimum Bend Radius: in (mm)2.00 (50.80)
  • Weight: lbs/100 ft (kg/100 m)3.40 (5.06)

Electrical Data

  • Impedance: ohms90
  • Capacitance: pF/ft (m)16.80 (55.00)
  • Time Delay: ns/ft (m)1.46 (4.79)
  • DC Resistance: ohms/1000 ft (m)28.40 (93.20)

Attenuation

Frequency  Nom/Max dB/100 ft Nom/Max (dB/m)
@625 MHz 0.3/0.3 (1.0/1.1)
@1.25 MHz 0.4/0.5 (1.4/1.5)
@2.50 MHz 0.6/0.7 (2.0/2.2)
@5.0 MHz 0.9/1.0 (3.0/3.4)
@7.50 MHz 1.3/1.4 (4.1/4.6)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data
