V76261 - 75 Ohm Coaxial Cable
The V76261 75 Ohm coaxial cable is substantially stronger (more than twice the tensile strength), has better attenuation characteristics, and has superior shielding effectiveness compared to M17/94-RG179 cables. The V76261 construction includes a stranded silver-plated copper center conductor nearly 60% larger than in RG179 — yet the overall diameter of the cable increases by only 23%. To maintain correct impedance in its small diameter, a foamed fluoropolymer dielectric surrounds the center conductor. The cable is double-shielded with a braid of tin-plated copper and an aluminized 100%-coverage wrapper. This combination yields better than -90 dB shielding effectiveness.
*When using in high density D38999 connectors or in fully sealed environments, please contact PIC for assistance.

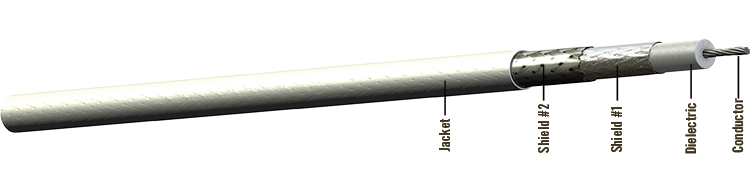

Cable Construction
- Conductor: Silver-Plated Copper
- Dielectric: FEP
- Shield #1: Aluminum/Polyimide Composite
- Shield #2: Tin-Plated Copper Braid
- Jacket: Extruded ETFE, White (Laser-Markable)
Physical Data
- Conductor:26 AWG Stranded SPC
- Temperature Range: -55/150°C
- Outer Diameter: in (mm)0.12 (3.10)
- Minimum Bend Radius: in (mm)0.60 (15.24)
- Weight: lbs/100 ft (kg/100 m)1.10 (1.60)
Electrical Data
- Impedance: ohms75
- Capacitance: pF/ft (m)16.00 (52.50)
- Velocity of Propagation: 80.00%
- Time Delay: ns/ft (m)1.27 (4.17)
- Shielding Effectiveness: dB (min)-90
- Dielectric Voltage Rating: (kV, RMS)2.00
- DC Resistance: ohms/1000 ft (m)34.50 (113.20)
Attenuation
| Frequency | Nom/Max dB/100 ft | Nom/Max (dB/100 m) |
|---|---|---|
| @0.135 GHz | 5.8/6.4 | (19.0/21.0) |
| @0.180 GHz | 6.7/7.4 | (22.0/24.3) |
| @0.270 GHz | 8.3/9.1 | (27.2/29.9) |
| @0.360 GHz | 9.7/10.6 | (31.8/34.8) |
Formula for Attenuation:
(K1 × √F(MHz) + (K2 × F(MHz))
K Values (nom loss):
K1 =0.487 K2 =0.0012
