MULTI-BAND SOLUTIONS FOR FLEXCOMM 5000 SERIES RADIO INSTALLATIONS

In conjunction with Canyon Aeroconnect®, PIC Wire & Cable has developed a series of assemblies explicitly tuned for use with Canyon’s Tactical Aircraft Radio product line. The Flexcomm™ line of radios from Canyon is utilized across a wide range of missions including U.S. Military, Customs & Border Protection, Police, EMS, and Search and Rescue aircraft operators around the globe. These Multi-band radios utilize AM/FM and UHF/VHF bands up to 970MHz covering the entire civil support frequency range.

FLEXCOMM 5000 SERIES CABLE OPTIONS

When it comes to these special-use aircraft, the slightest deviation in performance can make the difference between mission success and radio silence. With mission-critical systems like Canyon Aeroconnect Tactical Radios, the importance of selecting the right cable cannot be understated. That’s why Canyon Aeroconnect recommends PICMates RF cables be used with their Tactical Aircraft Radios. The PICMates RF coaxial cables are lightweight, flexible, low loss, and high temperature. They are designed for aircraft operating in a wide array of mission profiles, where unpredictable environments are present. With PICMates assembly sets, you can streamline the installation of these systems while achieving the highest quality of performance expected by the operators themselves.



MAXIMUM CABLE LENGTH (INCHES) FOR FLEXCOMM 5000 SERIES

For Multiband cables that cover frequencies above & below 400 MHz, testing is to be conducted at both 2:1 and 2.5:1 VSWR.

MAX Insertion Loss is 3dB, MAX VSWR is shown below
Cable P/N AWG OD 0<399 MHz
MAX 2:1 VSWR
0<399 MHz
MAX 2.5:1 VSWR
400<970 MHz
MAX 2:1 VSWR
400<970 MHz
MAX 2.5:1 VSWR
UH22089 10 0.435 1176 990 717 599
S55122 12 0.310 802 675 489 409
S33141 14 0.270 606 510 371 310

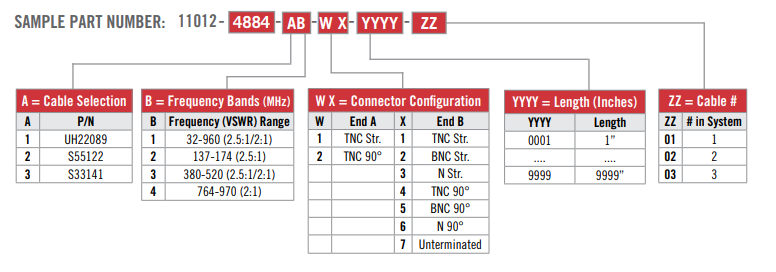

 ASSEMBLY PART NUMBER BUILDER

Accelerate the cable assembly procurement process by building a part number with design details that meet an application’s specific requirements. Ready-to-use engineering drawings are provided to streamline the FAA submission process for part modifications and installations.



Canyon Aeroconnect Flexcomm 5000 cable assemblies
