E74826 - CAT 7 (Class F) Ethernet Cable (4 Data Pair)

The E74826 is a 4 pair, 10G Base-T Cat 7 cable that incorporates an innovative design that provides maximum electrical performance in a small, lightweight, flexible package. Each pair uses a Silver-Plated Copper alloy conductor and is individually shielded. The E74826 cable delivers 10 Gb performance per ISO 11801, Class F Channel requirements. An ETFE laser-markable jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation. E74826 is suitable for airborne 10G Base-T CAT7 Local Area Network applications such as cabin management systems (CMS), in-flight entertainment (IFE), and Ethernet backbones.

E74826 Product Bulletin

E74826 Burn Test Data

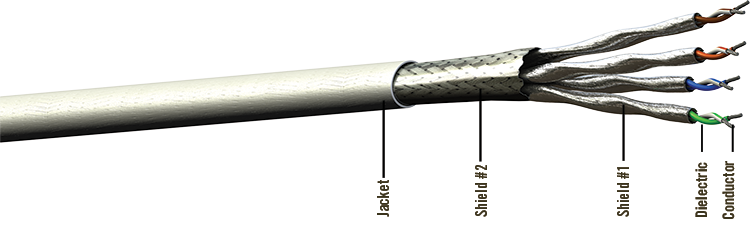

Cable Construction

  • Conductor: Silver-Plated Copper Alloy
  • Dielectric: FEP
  • Shield #1: Aluminum/Polyester Foil (Each Pair)
  • Shield #2: Silver-Plated Copper Braid
  • Jacket: ETFE, White (Laser Markable)

Color Codes

  • Pair #1: Blue, White/Blue Stripe
  • Pair #2: Orange, White/Orange Stripe
  • Pair #3: Green, White/Green Stripe
  • Pair #4: Brown, White/Brown Stripe

Physical Data

  • Conductor:26 AWG Stranded SPCA
  • Shield Coverage:100% Foil / 90% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.23 (5.84)
  • Minimum Bend Radius: in (mm)1.80 (45.72)
  • Weight: lbs/100 ft (kg/100 m)3.30 (4.90)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)13.00 (42.70)
  • Velocity of Propagation: 78.00%
  • Dielectric Voltage Rating: (kV, RMS)0.90
  • DC Resistance: ohms/1000 ft (m)44.80 (147.00)
  • Max Distance:* ft (m)230 (70)


Frequency  Nom/Max dB/100 ft  Nom/Max (dB/100 m)
@100 MHz 7.5/9.0 (24.6/29.5)
@250 MHz 12.3/14.7 (40.4/48.2)
@500 MHz 17.8/21.4 (58.4/70.2)
@600 MHz 22.5/23.7 (73.8/77.8)

Spec Sheet Builder

E74826 Connectors

Select one or more connector files to download directly or add to your compiled pdf document.

Connector TypeDescriptionPart NumberTermination InstructionsAdd to Spec Sheet
RJ45 For 4 Pair Cables90 Deg Plug w/ATUM Strain Relief (Cat 6a)110900 (568B)T-110900
90 Deg Plug w/ATUM Strain Relief (Cat 6a)110912 (568A)T-110912
Jack w/ATUM Strain Relief (Cat 6a)110937T-110937
Jack w/ATUM Strain Relief (Cat 6a)110938T-110938
Plug w/Clamp Nut Strain Relief (Cat 8 ‐ 568B Only)111112T-111112
Shielded CAT 6a, Plug w/ATUM Strain Relief111174T-111174
Shielded CAT 6a, Plug w/Strain Relief Sleeve111175T-111175
Shielded CAT 6a, Plug w/Protective Boot111176T-111176
Plug w/ATUM Strain Relief (Cat 6a) fits Amphenol (RJF) Ruggedized Backshell111177T-111177
